Autonics USA 100-240V AC Temperature Controller - PID Temp Control
Autonics USA 100-240V AC Temperature Controller - PID Temp Control
SKU:PRO-fe3c97
Autonics USA 100-240V AC Temperature Controller - Reliable, precise PID temp control for industrial needs.
Regular price
$182.95
Regular price
Sale price
$182.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller - PID Temp Control
$182.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller - PID Temp Control
$182.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

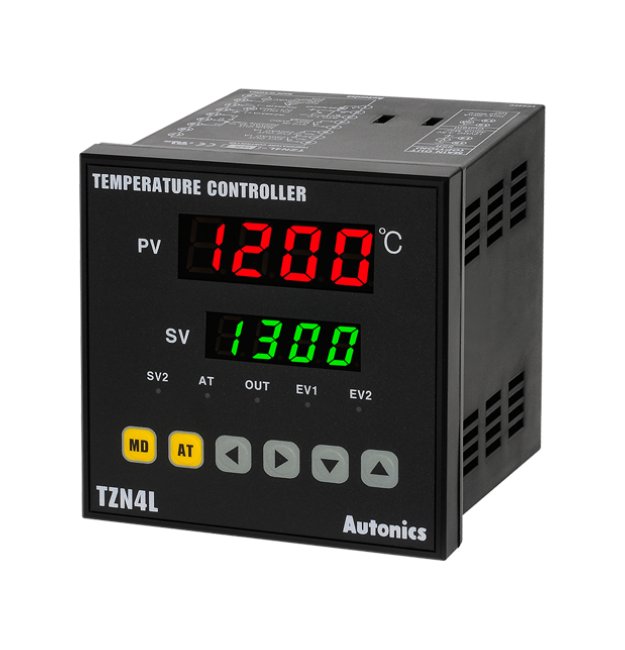

The Autonics USA 100-240V AC Temperature Controller is a versatile solution for precise temperature control in various industrial settings. With a range of control methods including On/Off, PIDF, and more, this controller ensures optimal performance. It features relay output, alarm output, PV retransmission, and supports multiple input specifications for thermocouples, RTDs, and analog signals. Meeting Canadian, US, CE standards, and more, this controller guarantees reliability and compliance. The 4-digit LED display, adjustable alarm hysteresis, and dual PID type make it a top choice for efficient temperature management.
Product Specifications
Specifications Alarm Output
Alarm1+PV transmission
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
96 x 96 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
182.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1, PV transmission (DC4-20mA)
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
303 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
474 g
Specifications Weight
0.97 lb
