Autonics USA 100-240V AC Temperature Controller with Dual PID, Relay Output
Autonics USA 100-240V AC Temperature Controller with Dual PID, Relay Output
SKU:PRO-c132fb
Enhance temperature control with Autonics USA 100-240V AC Temperature Controller. Compact design, multiple control methods, and precise accuracy for optimized performance.
Regular price
$167.95
Regular price
Sale price
$167.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Temperature Controller with Dual PID, Relay Output
$167.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Temperature Controller with Dual PID, Relay Output
$167.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

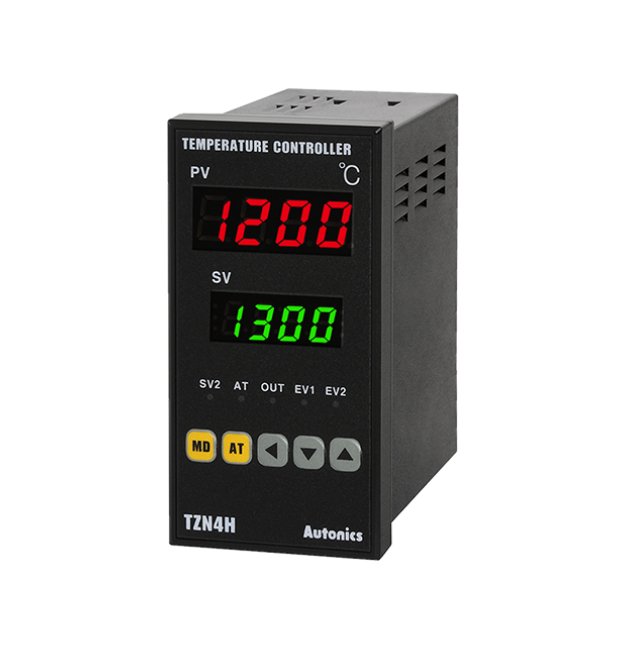

The Autonics USA 100-240V AC Voltage Temperature Controller is a cutting-edge solution for precise temperature management. This controller boasts a compact design measuring 48mm in width and 96mm in height. It supports various control methods including On/Off, P, PD, PI, PIDF, and PIDS, providing flexibility in temperature regulation. With Canadian and US standards by Underwriters' Laboratories (CURUS) and European Conformity (CE) approval, this controller ensures safety and quality. Featuring an intuitive 4-digit 7-segment LED display, compatibility with multiple input specifications, and customizable alarm settings, this controller offers unparalleled accuracy and control in temperature-sensitive environments.
Product Specifications
Specifications Alarm Output
Alarm1
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3,600 s
Specifications Dimensions
48 x 96 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
96 mm
Specifications Integral Time Range
0 to 3,600 s
Specifications Lba Setting
1 to 999
Specifications List Price
167.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
232 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
351 g
Specifications Weight
0.75 lb
Specifications Width
48 mm
