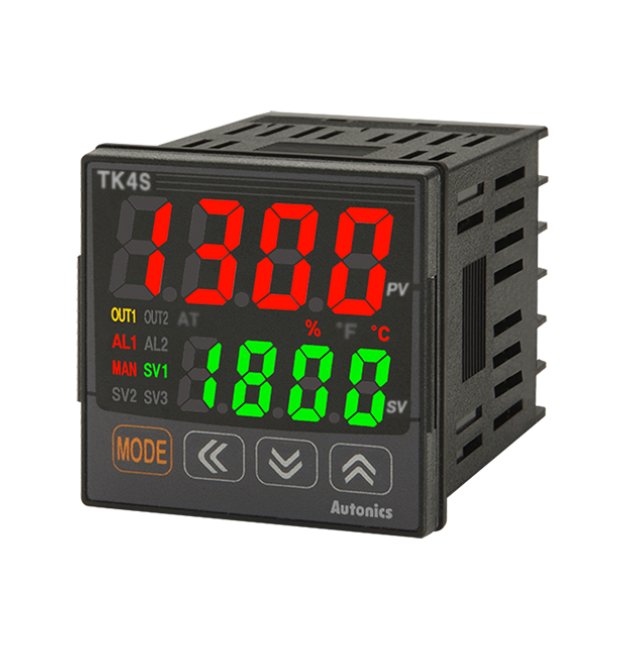

Autonics USA 100-240V AC Voltage Temp Controller
Autonics USA 100-240V AC Voltage Temp Controller
SKU:PRO-badf73
Precise Autonics USA 100-240V AC Voltage Temperature Controller for industrial applications. PID Control, IP65 protection, and multi-input options for accurate temperature management.
Regular price
$144.95
Regular price
Sale price
$144.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temp Controller
$144.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temp Controller
$144.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Voltage Temperature Controller offers precise control in diverse environments with features like On/Off Control, PID Control, and IP65 protection. Meeting Canadian, US, and European standards, this controller ensures accuracy and reliability for industrial applications. With a 4-Digit LED display, versatile input specifications, and adjustable settings, it provides optimal temperature management for various processes.
Product Specifications
Specifications Alarm Output
Alarm1+PV transmission
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Display Accuracy
At room temperature(23ºC±5ºC): ±0.3% F.S. ±1-digitOut of range of room temperature: ±0.5ºC% F.S. ±1-digit
Specifications Analog Input Specification
0 to 100mV | 0 to 10V | 0 to 20mA | 0 to 5V | 1 to 5V | 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Relay Contact Output
Specifications Control Output 1
Relay (250VAC, 3A)
Specifications Ct Input Display Accuracy
±5% F.S. ±1-Digit
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
48 x 48 mm
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Adjustable Sensitivity
RTD/Thermocouples: 1 to 100ºC/ºF(0.1 to 100.0ºC/ºF) Variable Analog: 1 to 100-Digit
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 2kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
144.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
S" represents SSR drive output support models which SSRP function (standard ON/OFF control, cycle control, phase control) are available. "C" represents selectable current and SSR drive output support models.Select "R" or "C" type in case of using heating and cooling control and "N" type in case of using standard control.Does not support in AC/DC voltage type model.CT input of TK4N is available only for the standard model which has alarm output 1.Display accuracy:At room temperature (23?±5?)Thermocouple K, J, T, N, E type, below -100?/Thermocouple L, U, PL? type, RTD Cu50?, DPt50?: (PV ±0.3% or ±2?, select the higher one) ±1-digitThermocouple C, G, R, S type, below 200?: (PV ±0.3% or ±3?, select the higher one) ±1-digitThermocouple B type, below 400?: there is no accuracy standards.Out of room temperature rangeRTD Cu50?, DPt50?: (PV ±0.5% or ±3?, select the higher one) ±1-digitThermocouple R, S, B, C, G type: (PV ±0.5% or ±5?, select the higher one) ±1-digitOthers, Below -100?: within ±5?In case of TK4SP Series, ±1? will be added to the degree standard.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Input
CT, Digital(DI-1)
Specifications Option Output
Alarm 1, Transmission(DC4-20mA)
Specifications Proportional Band
0.1 to 999.9ºC/ºF(0.1 to 999.9%)
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Relay Output Control Period
0.1 to 120.0 s
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu100Ω | Cu50Ω | DPt100Ω | DPt50Ω | JPt100Ω | Nickel 120Ω
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
105 g
Specifications Ssr Output Control Period
1.0 to 120.0 s
Specifications Thermocouple Input Specification
B(PR) | C(TT) | E(CR) | G(TT) | J(IC) | K(CA) | L(IC) | N(NN) | Platinel II | R(PR) | S(PR) | T(CC) | U(CC)
Specifications Type
High Accuracy
Specifications Unit Weight
150 g
Specifications Weight
0.45 lb
