Autonics USA 100-240V AC Voltage Temp Controller
Autonics USA 100-240V AC Voltage Temp Controller
SKU:PRO-002b9e
Advanced 100-240V AC Voltage Temp Controller for precise industrial temperature regulation. PID control, compact design, and multiple control methods.
Regular price
$179.95
Regular price
Sale price
$179.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temp Controller
$179.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temp Controller
$179.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

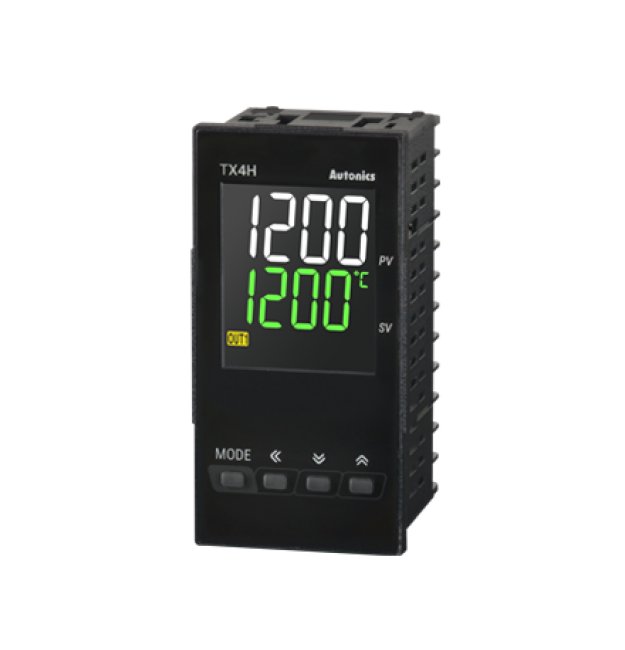

The Autonics USA 100-240V AC Voltage Temperature Controller is a cutting-edge solution for precise temperature management in industrial settings. With a compact design of 46mm width and 96mm height, this controller features a 4-Digit LCD display and PID control for optimized performance. Offering a wide range of control methods including On/Off, P, PD, PI, and PID control, it ensures accurate and reliable temperature regulation. The unit is compliant with Canadian and US Standards (CURUS), European Conformity (CE), and Korea Certification (KC), making it ideal for government and institutional procurement needs.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE) | Korea Certification (KC)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Current (DC0/4 to 20mA) or SSR drive (13VDC)[ON/OFF]
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Method
4-Digit 11-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
96 mm
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable
Specifications Insulation Type
Double Insulation (Dielectric Strength Between Primary Circuit and Secondary Circuit: 3kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
179.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
When using the unit at low temperature (below 0?), display cycle is slow. Control output operates normally.At room temperature(23?±5?)TC R(PR), S(PR) , below 200?: (PV ±0.5% or ±3?, select the higher one) ±1-digit, over 200?: (PV ±0.5% or ±2?, select the higher one) ±1-digitTC L(IC), RTD Cu50?: (PV ±0.5% or ±2?, select the higher one) ±1-digitOut of room temperature rangeTC R(PR), S(PR): (PV ±1.0% or ±5?, select the higher one) ±1-digitTC L(IC), RTD Cu50?: (PV ±0.5% or ±3?, select the higher one) ±1-digitThe weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Alarm 1/2, RS485 comm.
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Protection Structure
Ingress Protection (IP) 50 (Front Panel)
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
133 g
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC) | R(PR) | S(PR) | T(CC)
Specifications Unit Weight
214 g
Specifications Weight
0.2 lb
Specifications Width
46 mm
