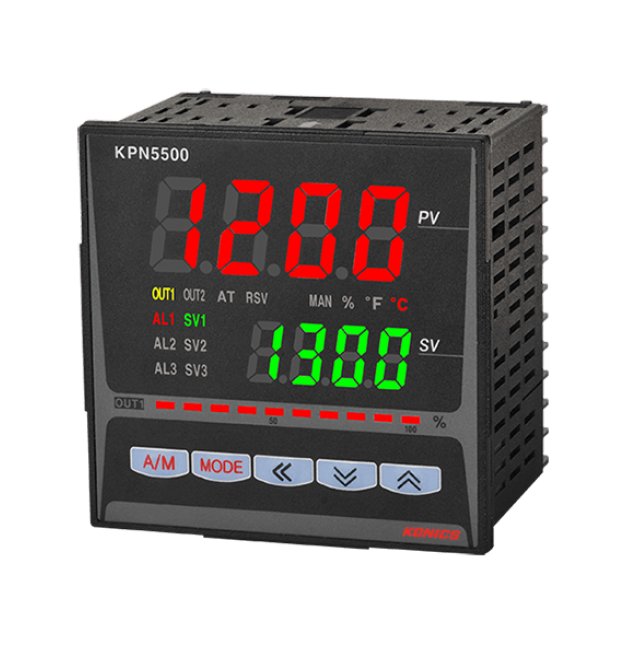

Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-4d9d32
Versatile temperature controller with wide input range, flexible control options, and IP65 protection for industrial applications.
Regular price
$362.95
Regular price
Sale price
$362.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$362.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$362.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Voltage Temperature Controller is a highly versatile and precise device designed for temperature regulation in industrial and institutional settings. With a wide input range compatible with various temperature sensors including Resistance Temperature Detectors (RTD) and Thermocouples (TC), this controller offers flexible control options such as On/Off Control, P, PD, PI, or PID Control. The IP65 Protection Structure ensures durability in challenging environments, while the European Conformity (CE) approval guarantees compliance with quality and safety standards. Ideal for applications requiring accurate temperature management, this controller offers reliability and performance for heating and cooling systems.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Selectable Relay Output, Current Output, SSR Drive Output
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
96 mm
Specifications Inputoutput Option
Transmission Output + Remote SV
Specifications Input Type Analog Current
0 to 20 mA | 4 to 20 mA
Specifications Input Type Analog Voltage
0 to 10 V | 0 to 100 mV | 0 to 5 V | 1 to 5 V
Specifications Input Type Resistance Temperature Detector Rtd
Cu100Ω | Cu50Ω | DPt100Ω | DPt50Ω | JPt100Ω | Nikel120Ω (6 types)
Specifications Input Type Tc
B | C | E | G | J | K | L | N | PLII (13 types) | R | S | T | U
Specifications List Price
362.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
220 g
Specifications Size
DIN W96ÃH96mm
Specifications The Number Of Control Output
1 Output Type(Heating or Cooling Type)
Specifications Unit Weight
316 g
Specifications Weight
0.2 lb
Specifications Width
96 mm
