Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-430051
Enhance temperature control with Autonics USA 100-240V AC Voltage Temperature Controller. PID control, LCD display, and alarm outputs for precision regulation.
Regular price
$137.95
Regular price
Sale price
$137.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$137.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$137.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

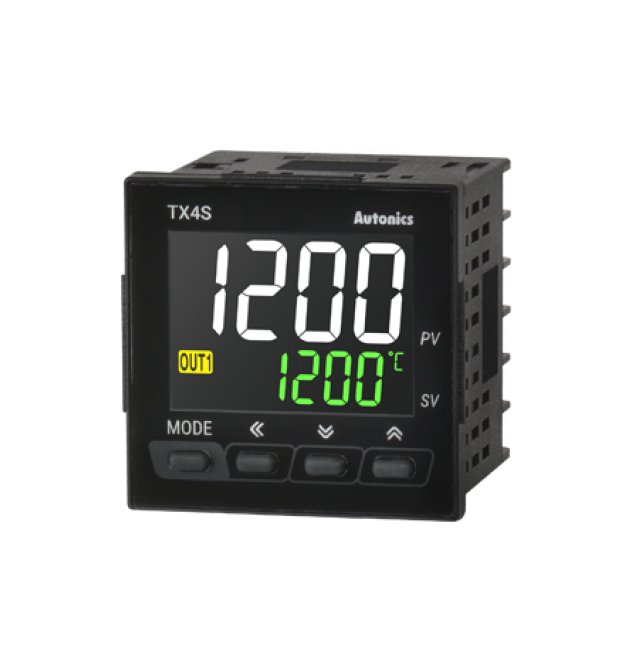

The Autonics USA 100-240V AC Voltage Temperature Controller is a precise 1/16 DIN device featuring PID control, 4-Digit LCD display, and 2 Alarm outputs. With a wide AC voltage range, multiple control methods, and SSR Drive Output, this controller ensures accurate temperature regulation for various applications. Approved by CURUS, CE, and KC, it meets stringent industry standards for safety and reliability. Ideal for environments with temperatures ranging from -10 to 50°C, this controller offers versatile thermocouple and RTD input options, making it a top choice for institutional and government buyers seeking efficient temperature management solutions.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE) | Korea Certification (KC)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Current Output (DC 4 to 20mA)+SSR Voltage Output
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
48 x 48 mm
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Method
4-Digit 11-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable
Specifications Insulation Type
Double Insulation (Dielectric Strength Between Primary Circuit and Secondary Circuit: 3kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
137.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
When using the unit at low temperature (below 0?), display cycle is slow. Control output operates normally.At room temperature(23?±5?)TC R(PR), S(PR) , below 200?: (PV ±0.5% or ±3?, select the higher one) ±1-digit, over 200?: (PV ±0.5% or ±2?, select the higher one) ±1-digitTC L(IC), RTD Cu50?: (PV ±0.5% or ±2?, select the higher one) ±1-digitOut of room temperature rangeTC R(PR), S(PR): (PV ±1.0% or ±5?, select the higher one) ±1-digitTC L(IC), RTD Cu50?: (PV ±0.5% or ±3?, select the higher one) ±1-digitThe weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Alarm 1/2, Transmission(DC4-20mA)
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Protection Structure
Ingress Protection (IP) 50 (Front Panel)
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
86.7 g
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC) | R(PR) | S(PR) | T(CC)
Specifications Type
Liquid Crystal Display (LCD)
Specifications Unit Weight
146.1 g
Specifications Weight
1 lb
