Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-cfcf82
Achieve precise temperature control with the Autonics USA 100-240V AC Voltage Temperature Controller. Compact design, PID control, and multi-output options for industrial applications.
Regular price
$148.95
Regular price
Sale price
$148.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$148.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$148.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

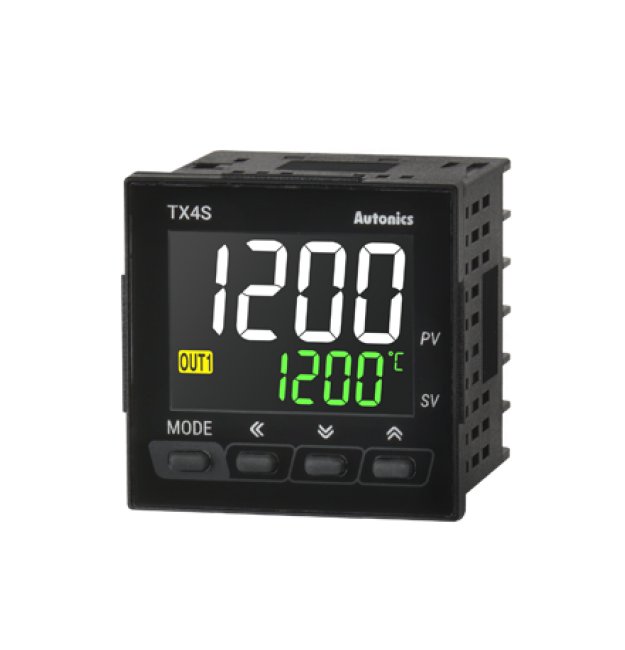

The Autonics USA 100-240V AC Voltage Temperature Controller is a cutting-edge solution for precise temperature control in industrial settings. With a compact 48 x 48 mm size, this controller features PID control, a 4-digit LCD display, and selectable output options. It meets Canadian and US Standards (CURUS), CE, and KC approval, ensuring top-notch quality and safety. The controller offers a wide range of specifications including multiple control methods, fast 50ms sampling cycle, and robust protection with IP50. Designed for reliability and accuracy, it also boasts a versatile display, various input specifications, and adjustable hysteresis. Ensure optimal temperature management with this advanced controller.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE) | Korea Certification (KC)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Current Output (DC 4 to 20mA)+SSR Voltage Output
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
48 x 48 mm
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Method
4-Digit 11-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable
Specifications Insulation Type
Double Insulation (Dielectric Strength Between Primary Circuit and Secondary Circuit: 3kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
148.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
When using the unit at low temperature (below 0?), display cycle is slow. Control output operates normally.At room temperature(23?±5?)TC R(PR), S(PR) , below 200?: (PV ±0.5% or ±3?, select the higher one) ±1-digit, over 200?: (PV ±0.5% or ±2?, select the higher one) ±1-digitTC L(IC), RTD Cu50?: (PV ±0.5% or ±2?, select the higher one) ±1-digitOut of room temperature rangeTC R(PR), S(PR): (PV ±1.0% or ±5?, select the higher one) ±1-digitTC L(IC), RTD Cu50?: (PV ±0.5% or ±3?, select the higher one) ±1-digitThe weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Alarm 1/2, RS485 comm.
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Protection Structure
Ingress Protection (IP) 50 (Front Panel)
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
86.7 g
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC) | R(PR) | S(PR) | T(CC)
Specifications Type
Liquid Crystal Display (LCD)
Specifications Unit Weight
146.1 g
Specifications Weight
1 lb
