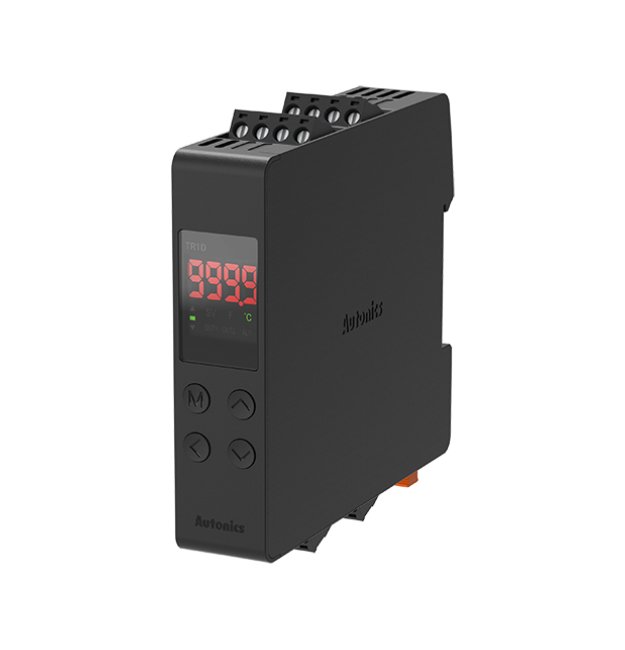

Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-8bab89
Versatile temperature controller with precise control methods and robust design for industrial applications.
Regular price
$154.95
Regular price
Sale price
$154.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$154.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$154.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Voltage Temperature Controller is a versatile single display modular controller suitable for a wide range of industrial applications. With 2 current or SSR outputs, alarm output, and CT input, this controller offers precise temperature control with options for On/Off, P, PD, PI, or PID control methods. It meets European Conformity (CE) standards and operates in ambient temperatures from -10 to 50 ºC, making it ideal for demanding environments. The controller's robust design includes noise immunity, dielectric strength, and vibration resistance, ensuring reliable performance in challenging conditions.
Product Specifications
Specifications Alarm Output Hysteresis
Alarm output: 1 to 100ºC/ºF (0.1 to 50.0ºC/ºF)
Specifications Allowable Rated Voltage Range
90 to 110 %
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Period
0.5 to 120.0 s
Specifications Ct Input Display Accuracy
±5% F.S. ±1-Digit
Specifications Ct Input Type
0.0 to 50.0A (Primary Current Measurement Range) CT Ratio=1/1000
Specifications Current Control Output
Selectable Direct Current (DC) 4 to 20mA or Direct Current (DC) 0 to 20mA (Load Resistance Maximum 500â¦)
Specifications Derivative Time
0 to 9999 s
Specifications Dielectric Strength
3000VAC 50/60Hz for 1 min (Between the Power Part and the Case)
Specifications Display Accuracy Resistance Temperature Detector
At room temperature (23ºC ±5ºC): (PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature ranges: (PV ±+H400.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Accuracy Thermocouple
At room temperature (23ºC ±5ºC): (PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature ranges: (PV ±+H400.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Method
4-Digit 7-Segment (Red)
Specifications Electrical Relay Life Cycle
OUT1/2, AL1/2: Minimum 100000 (Resistance Load: 250VAC, 5A)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Control Output
Control output: 1 to 100ºC/ºF (0.1 to 100.0ºC/ºF), Alarm output: 1 to 100ºC/ºF (0.1 to 50.0ºC/ºF)
Specifications Insulation Resistance
100M⦠or More (500VDC Megger Basis)
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between Measuring the Power Part and the Case : 3kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
154.95 USD
Specifications Maximum Ssr Control Direct Current Dc Voltage Out
12 V
Specifications Mechanical Relay Life Cycle
OUT1/2, AL1/2: Minimum 5000000 Operations
Specifications Memory Protection
Approximate 10 years (Non-volatile Semiconductor Memory Type)
Specifications Noise Immunity
Square Shaped Noise by Noise Simulator (Pulse Width 1µs) ±2kV R-phase, S-phase
Specifications Option Output Transmission
Direct Current (DC) 4 to 20mA (Load Resistance: Maximum 500Ω)
Specifications Power Consumption
8
Specifications Proportional Band
0.1 to 999.9ºC
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω | Nickel120Ω (Permissible Line Resistance Maximum 5Ω)
Specifications Sampling Cycle
50 ms | 100 ms | 250 ms
Specifications Shipping Weight
123.5 g
Specifications Ssr Control Current Output
20 mA
Specifications Ssr Control Direct Current Dc Voltage Tolerance
±3 V
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC) | R(PR) | S(PR) | T(CC)
Specifications Unit Weight
194.5 g
