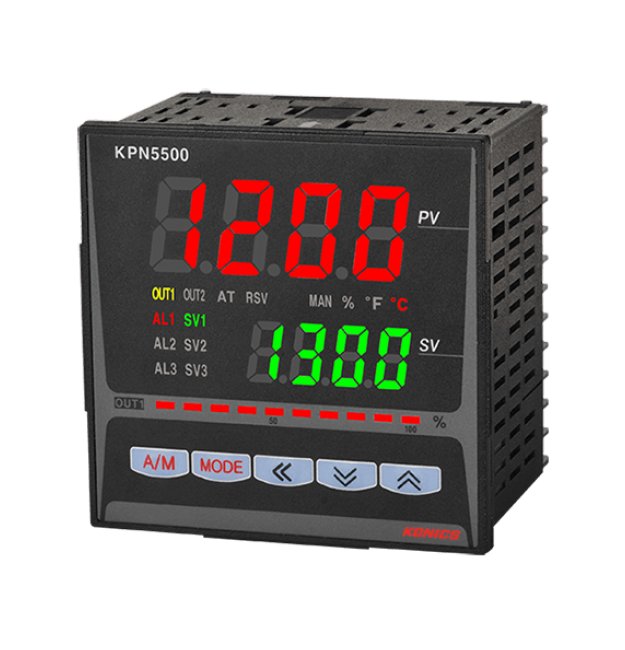

Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-acf92d
Precision temperature control up to 240V AC, versatile input options, and CE approved for industrial reliability.
Regular price
$397.95
Regular price
Sale price
$397.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$397.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$397.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Voltage Temperature Controller is a top-of-the-line solution for precise temperature control in industrial settings. With a wide input range accommodating various resistance temperature detectors (RTDs), thermocouples, and analog signals, this controller offers versatile compatibility. Featuring multiple control methods including On/Off, P, PD, PI, and PID, it ensures accurate and stable control. The device maintains a high level of protection with its IP65 front panel rating, making it suitable for demanding environments. Additionally, the unit is CE approved, showcasing compliance with European standards for reliability and performance.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Selectable Relay Output, Current Output, SSR Drive Output
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
96 mm
Specifications Inputoutput Option
Transmission Output + Remote SV
Specifications Input Type Analog Current
0 to 20 mA | 4 to 20 mA
Specifications Input Type Analog Voltage
0 to 10 V | 0 to 100 mV | 0 to 5 V | 1 to 5 V
Specifications Input Type Resistance Temperature Detector Rtd
Cu100Ω | Cu50Ω | DPt100Ω | DPt50Ω | JPt100Ω | Nikel120Ω (6 types)
Specifications Input Type Tc
B | C | E | G | J | K | L | N | PLII (13 types) | R | S | T | U
Specifications List Price
397.95 USD
Specifications Option Communication Output
RS485
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
220 g
Specifications Size
DIN W96ÃH96mm
Specifications The Number Of Control Output
1 Output Type(Heating or Cooling Type)
Specifications Unit Weight
316 g
Specifications Weight
0.2 lb
Specifications Width
96 mm
