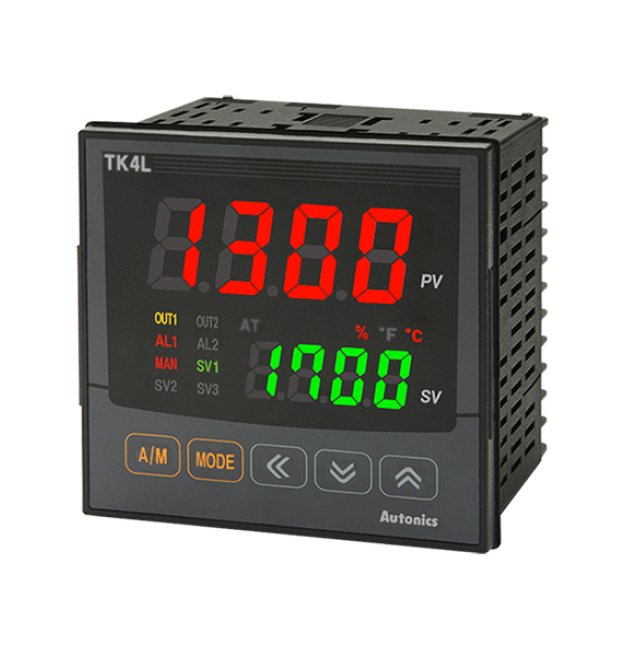

Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-1faeef
Advanced 100-240V AC Voltage Temperature Controller for precise industrial temperature control with multiple control methods and high accuracy.
Regular price
$144.95
Regular price
Sale price
$144.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$144.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$144.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Voltage Temperature Controller is precision-engineered for optimal temperature control in industrial settings. With a compact DIN W96xH96mm design, this controller features multiple control methods including On/Off, P, PD, PI, and PID Control. It offers high accuracy and reliability approved by Canadian and US Standards (CURUS), European Conformity (CE), making it ideal for a wide range of applications. The controller supports various thermocouple and RTD inputs, along with analog input options, ensuring versatility and customized control settings. Its 4-digit LED display, alarm output, and robust construction make it a dependable choice for demanding environments.
Product Specifications
Specifications Alarm Output
Alarm1
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Display Accuracy
At room temperature(23ºC±5ºC): ±0.3% F.S. ±1-digitOut of range of room temperature: ±0.5ºC% F.S. ±1-digit
Specifications Analog Input Specification
0 to 100mV | 0 to 10V | 0 to 20mA | 0 to 5V | 1 to 5V | 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Current Output (DC 4 to 20mA)+SSR Voltage Output
Specifications Control Output 1
Current (DC0/4 to 20mA) or SSR Drive(11VDC) [ON/OFF]
Specifications Ct Input Display Accuracy
±5% F.S. ±1-Digit
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
96 x 96 mm
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Height
96 mm
Specifications Hysteresis Adjustable Sensitivity
RTD/Thermocouples: 1 to 100ºC/ºF(0.1 to 100.0ºC/ºF) Variable Analog: 1 to 100-Digit
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 2kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
144.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Option Input
CT, Digital(DI-1)
Specifications Option Output
Alarm 1
Specifications Proportional Band
0.1 to 999.9ºC/ºF(0.1 to 999.9%)
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Relay Output Control Period
0.1 to 120.0 s
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu100Ω | Cu50Ω | DPt100Ω | DPt50Ω | JPt100Ω | Nickel 120Ω
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
198 g
Specifications Ssr Output Control Period
1.0 to 120.0 s
Specifications Thermocouple Input Specification
B(PR) | C(TT) | E(CR) | G(TT) | J(IC) | K(CA) | L(IC) | N(NN) | Platinel II | R(PR) | S(PR) | T(CC) | U(CC)
Specifications Type
High Accuracy
Specifications Unit Weight
294 g
Specifications Weight
0.66 lb
Specifications Width
96 mm
