Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-96e33a
High-performance Autonics USA 100-240V AC Voltage Temperature Controller w/ PID control, SSR output, & dual alarms for precise temperature regulation.
Regular price
$173.95
Regular price
Sale price
$173.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$173.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$173.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

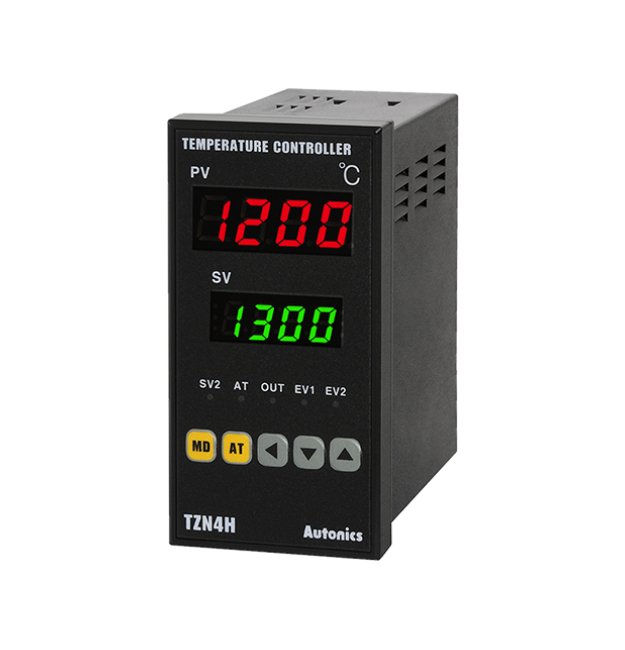

The Autonics USA 100-240V AC Voltage Temperature Controller is a high-performance PID controller designed for precision temperature regulation in industrial settings. With dimensions of 48 x 96 mm, this digital controller features On/Off Control, P, PD, PI, PIDF, and PIDS control methods for versatile usage. It offers precise SSR voltage output, dual alarm outputs, and supports a wide range of input specifications including thermocouple, RTD, and analog inputs. Approved by Canadian and US Standards (CURUS) and European Conformity (CE), this controller operates in ambient temperatures from -10 to 50 ºC with a 4-Digit LED display ensuring accurate monitoring.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
SSR voltage output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3,600 s
Specifications Dimensions
48 x 96 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
96 mm
Specifications Integral Time Range
0 to 3,600 s
Specifications Lba Setting
1 to 999
Specifications List Price
173.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
232 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
351 g
Specifications Weight
0.75 lb
Specifications Width
48 mm
