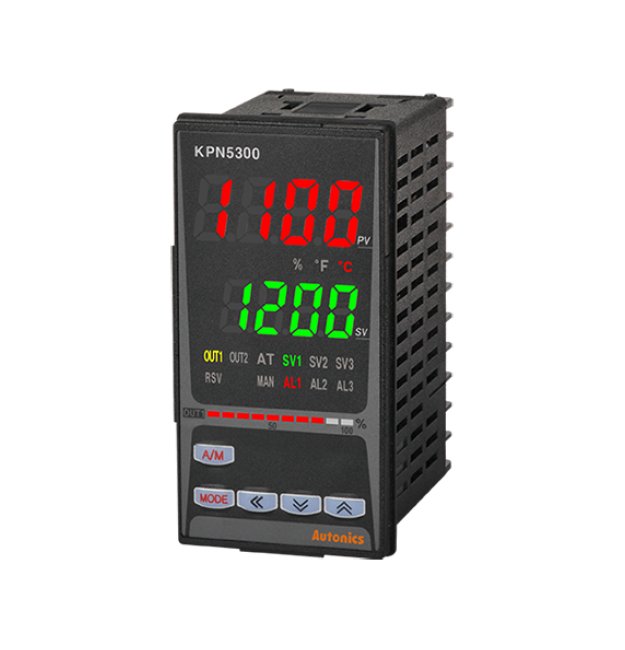

Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-35dd51
Versatile AC Voltage Temperature Controller for precise heating and cooling applications, meets CE standards.
Regular price
$328.95
Regular price
Sale price
$328.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$328.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$328.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Voltage Temperature Controller is a versatile and reliable solution for precise temperature control in both heating and cooling applications. With a wide range of input types including RTD and TC, and various control methods like PID, this controller ensures accurate and efficient operation. It meets European Conformity (CE) standards and offers ingress protection (IP) 65 for durability in diverse environments. Ideal for industrial and institutional settings requiring advanced temperature regulation.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Current Output | Selectable Relay Output | SSR Drive Output
Specifications Control Output Type
Relay, Current, SSR drive
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
96 mm
Specifications Inputoutput Option
None
Specifications Input Type Analog Current
0 to 20mA | 4 to 20mA
Specifications Input Type Analog Voltage
0 to 10 V | 0 to 100mV | 0 to 5 V | 1 to 5 V
Specifications Input Type Resistance Temperature Detector Rtd
Cu100Ω | Cu50Ω | DPt100Ω | DPt50Ω | JPt100Ω | Nikel120Ω (6 types)
Specifications Input Type Tc
B | C | E | G | J | K | L | N | PLII (13 types) | R | S | T | U
Specifications List Price
328.95 USD
Specifications Note
The 1 output type is heating or cooling output type and the 2 output type is heating and cooling output type.The 1 output type is able to use only one output among relay output, current output, SSR drive output.OUT1 of the 2 output type is fixed as heating output and OUT2 of the 2 output type is fixed as cooling output.If you select the SSR drive output or current output model, you can select the appropriate control output.Display accuracy:At room temperature (23 ±5)TC K, J, T, N, E type, below -100? / L, U, PL, RTD Cu50, DPt50: (PV ±0.3% or ±2, select the higher one) ±1digitTC C, G and R, S type, below 200?: (PV ±0.3% or ±3, select the higher one) ±1digitTC B type, below 400, there is no accuracy standards.Out of room temperature rangeRTD Cu50, DPt50: (PV 0.5% or ±3, select the higher one) ±1digitRTD R, S, B, C, G: (PV ±0.5% or ±10, select the higher one) ±1digitOther sensors: below -100, within ±5The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Number Of Control Output
1 (Heating or Cooling)
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
160 g
Specifications Size
48 x 96 mm
Specifications The Number Of Control Output
1 Output Type (Heating or Cooling Type)
Specifications Unit Weight
230 g
Specifications Weight
0.56 lb
Specifications Width
48 mm
