Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-5c3adb
Enhance temperature control with PID precision and J thermocouple support. Reliable 100-240V AC Voltage. CURUS and CE approved.
Regular price
$51.95
Regular price
Sale price
$51.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$51.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$51.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

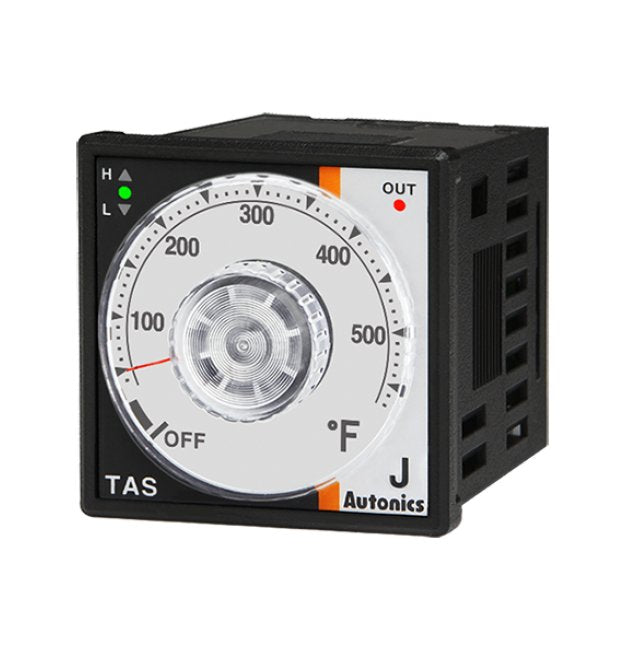

Upgrade your temperature control system with the Autonics USA 100-240V AC Voltage Temperature Controller. This 1/16 DIN controller features precise PID control, relay output, and J thermocouple compatibility. With a wide temperature range of 32 to 572°F, alternating current voltage support, and approval by major standards like CURUS and CE, this controller ensures accurate and reliable temperature management in diverse environments. Its compact dimensions and robust construction make it ideal for both consumer and institutional applications.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off | PID Control Combined
Specifications Control Output
Relay Contact Output
Specifications Dimensions
48 x 48 mm (8 pin plug type)
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications List Price
51.95 USD
Specifications Note
8-pin socket (PG-08, PS-08(N)) is sold separately.Setting accuracy: Below 100 model is F.S. ±3%Below 100 model is F.S. ±4%, Over 100 model is F.S. ±3%The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Sampling Cycle
100 ms
Specifications Sensor Input Type
T.C: J(IC)
Specifications Setting Accuracy
F.S. ±2%(Room Temperature 23â±5â)
Specifications Setting Range
32 to 572 ºF
Specifications Setting Type
Dial Setting
Specifications Shipping Weight
69 g
Specifications Size
DIN W48ÃH48mm
Specifications Temperature Range
32 to 572 ºF
Specifications Temperature Unit
ºF
Specifications Thermocouple Input Specification
J(IC)
Specifications Type
Analog
Specifications Unit
F
Specifications Unit Weight
107 g
Specifications Weight
0.37 lb
