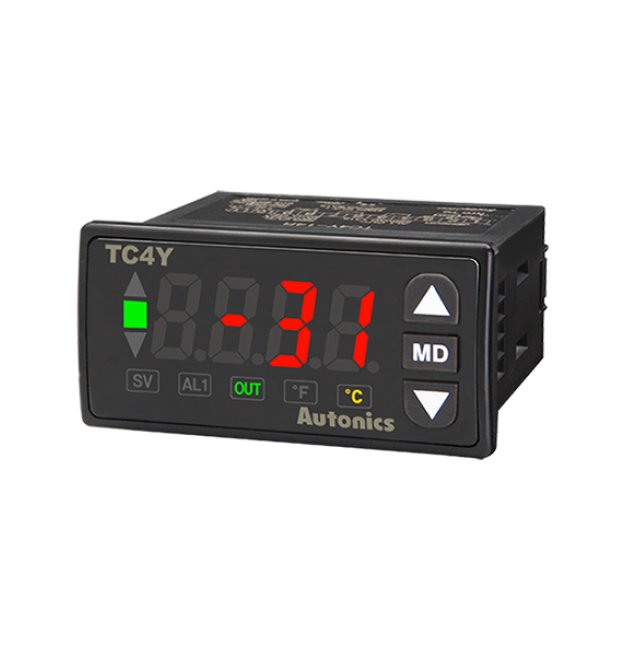

Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-ed0ca5
Precisely control temperature with the Autonics USA 100-240V AC Voltage Temperature Controller. Wide input specifications & approvals for institutional use.
Regular price
$78.95
Regular price
Sale price
$78.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$78.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$78.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Voltage Temperature Controller is a high-quality device designed for precise temperature control in various environments. With dimensions of 72 x 36 mm and approvals from UL, CE, this controller offers a wide range of control methods including PID control, relay & SSR output, and 1 alarm. It features a 4-digit LED display, multiple input specifications, and adjustable sensitivity, making it suitable for a diverse range of applications. This controller is compliant with federal procurement standards, ensuring reliability and performance in government and institutional settings.
Product Specifications
Specifications Alarm Output
Alarm1
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Relay+SSR(AC/DC power) | Relay+SSRP(AC power)
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
72 x 36 mm
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
78.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
In case of the AC voltage model, SSR drive output method (standard ON/OFF control, cycle, control, phase control) is available to select.Display accuracy: Thermocouple L(IC) type, RTD Cu50?At room temperature (23? ±5?): (PV ±0.5% or ±2?, select the higher one) ±1-digitOut of room temperature range: (PV ±0.5% or ±3?, select the higher one) ±1digitIn case of TC4SP Series, ±1? will be added.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Alarm 1
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
100 ms
Specifications Shipping Weight
85 g
Specifications Size
DIN W72ÃH36mm
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC)
Specifications Type
Economical Single Display
Specifications Unit Weight
174 g
Specifications Weight
0.33 lb
