Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-91f538
Ensure precise temperature control in industrial applications with the Autonics USA 100-240V AC Voltage Temperature Controller.
Regular price
$97.95
Regular price
Sale price
$97.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$97.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$97.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

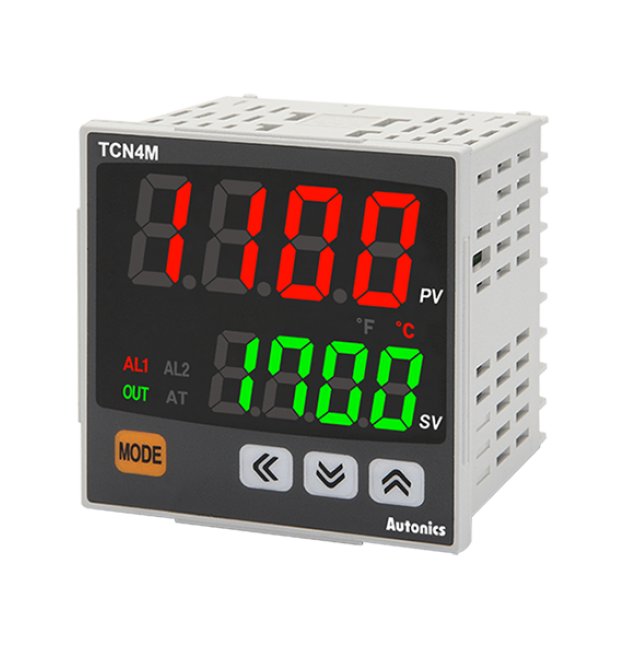

The Autonics USA 100-240V AC Voltage Temperature Controller is a versatile and reliable solution for precise temperature control in industrial settings. With dual display 4-digit LED, PID control, relay and SSR output, and 2 alarm outputs, this controller offers customizable control methods including On/Off, P, PD, PI, and PID control. Meeting Canadian, US, and EU standards, it operates seamlessly in environments with temperatures ranging from -10 to 50°C. Ideal for applications requiring accurate temperature regulation, this controller ensures efficiency and compliance with industry standards.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Relay+SSR(AC/DC power) | Relay+SSRP(AC power)
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
72 x 72 mm
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
97.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
In case of the AC voltage model, SSR drive output method (standard ON/OFF control, cycle control, phase control) is available to select.Display accuracy:At room temperature (23? ±5?)Thermocouple R (PR), S (PR), below 200?: (PV ±0.5% or ±3?, select the higher one) ±1-digitThermocouple R (PR), S (PR), over 200?: (PV ±0.5% or ±2?, select the higher one) ±1-digitThermocouple L (IC), RTD Cu50?: (PV ±0.5% or ±2?, select the higher one) ±1-digitOut of room temperature rangeThermocouple R (PR), S (PR), below 200?: (PV ±1.0% or ±6?, select the higher one) ±1-digitThermocouple R (PR), S (PR), over 200?: (PV ±0.5% or ±5?, select the higher one ±1-digitThermocouple L (IC), RTD Cu50?: (PV ±0.5% or ±3?, select the higher one) ±1-digitFor TCN4S-?-P, add ±1? by accuracy standard.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Alarm 1/2
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
100 ms
Specifications Sensing Pole Length
72 mm
Specifications Shipping Weight
133 g
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC) | R(PR) | S(PR) | T(CC)
Specifications Type
Economical Dual Display
Specifications Unit Weight
203 g
Specifications Weight
0.56 lb
Specifications Width
72 mm
