Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-8fee1c
High-quality 100-240V AC Voltage Temperature Controller with PID Control, Relay & SSR Output, and Approval from CURUS & CE.
Regular price
$91.95
Regular price
Sale price
$91.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$91.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$91.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

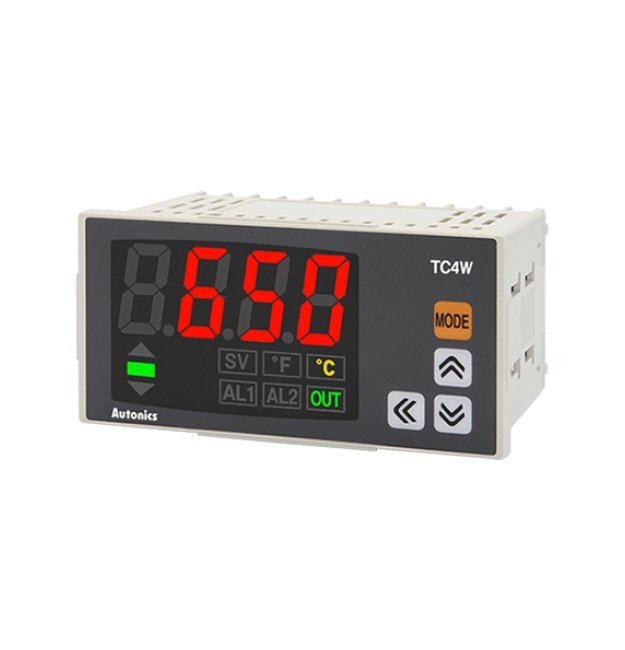

The Autonics USA 100-240V AC Voltage Temperature Controller is a high-quality, reliable solution for precise temperature control in industrial settings. This single display controller features PID control, relay & SSR output, and 2 alarm options. With approval from Canadian and US Standards by Underwriters' Laboratories (CURUS) and European Conformity (CE), this controller ensures compliance with international safety standards. Its versatile control methods, 4-Digit LED display, and wide temperature range make it ideal for a variety of applications. The compact DIN W96 x H48mm size and robust construction guarantee long-term performance and accuracy.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Relay+SSR(AC/DC power) | Relay+SSRP(AC power)
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
96 x 48 mm
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
48 mm
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
91.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
In case of the AC voltage model, SSR drive output method (standard ON/OFF control, cycle, control, phase control) is available to select.Display accuracy: Thermocouple L(IC) type, RTD Cu50?At room temperature (23? ±5?): (PV ±0.5% or ±2?, select the higher one) ±1-digitOut of room temperature range: (PV ±0.5% or ±3?, select the higher one) ±1digitIn case of TC4SP Series, ±1? will be added.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Alarm 1/2
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
100 ms
Specifications Shipping Weight
122 g
Specifications Size
DIN W96ÃH48mm
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC)
Specifications Type
Economical Single Display
Specifications Unit Weight
194 g
Specifications Weight
0.29 lb
Specifications Width
96 mm
