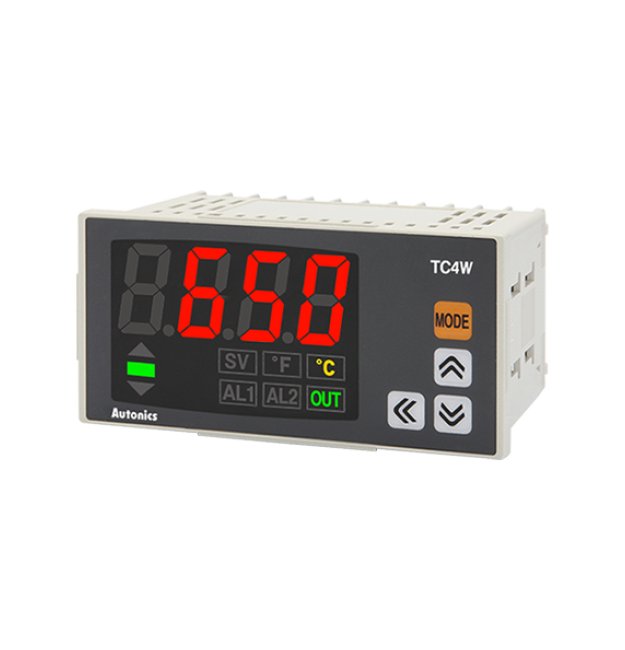

The Autonics USA 100-240V AC Voltage Temperature Controller is a high-quality temperature controller designed for precise temperature monitoring and control in industrial settings. This controller features a 4-Digit LED display, PID control, relay and SSR output, and comes with 1 alarm output for added safety measures. It meets Canadian and US Standards by Underwriters' Laboratories (CURUS), European Conformity (CE), and offers a wide range of control methods including On/Off Control, P, PD, PI, and PID Control. With a compact size of DIN W96 x H48mm, this temperature controller is perfect for a variety of applications.
Product Specifications
Specifications Alarm Output
Alarm1
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Relay+SSR(AC/DC power) | Relay+SSRP(AC power)
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
96 x 48 mm
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
48 mm
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
87.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
In case of the AC voltage model, SSR drive output method (standard ON/OFF control, cycle, control, phase control) is available to select.Display accuracy: Thermocouple L(IC) type, RTD Cu50?At room temperature (23? ±5?): (PV ±0.5% or ±2?, select the higher one) ±1-digitOut of room temperature range: (PV ±0.5% or ±3?, select the higher one) ±1digitIn case of TC4SP Series, ±1? will be added.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Alarm 1
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
100 ms
Specifications Shipping Weight
122 g
Specifications Size
DIN W96ÃH48mm
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC)
Specifications Type
Economical Single Display
Specifications Unit Weight
194 g
Specifications Weight
0.29 lb
Specifications Width
96 mm
