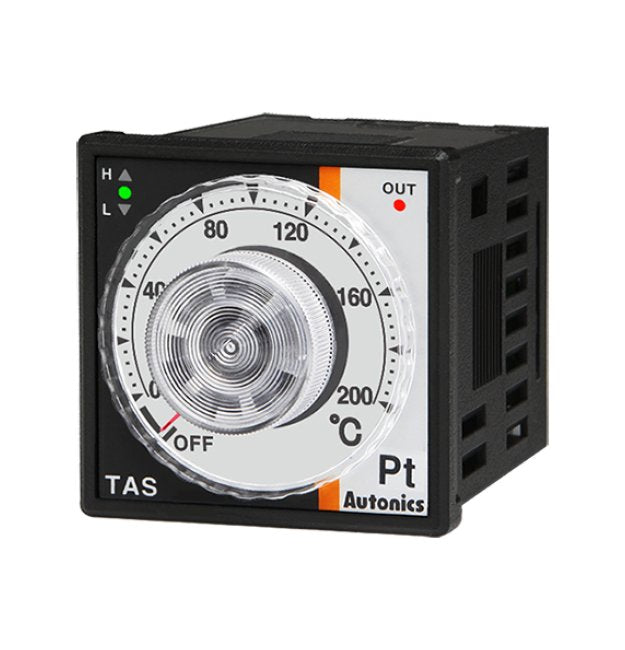

Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-05504b
Enhance temperature control with Autonics USA 100-240V AC Voltage Temperature Controller for accurate regulation (0-200 ºC) and robust safety features.
Regular price
$51.95
Regular price
Sale price
$51.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$51.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$51.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your temperature control system with the Autonics USA 100-240V AC Voltage Temperature Controller. Featuring PID control, SSR output, and RTD input, this analog controller ensures precise temperature regulation from 0 to 200 ºC. Built with double insulation and meeting Canadian, US, and European standards, it guarantees safety and reliability in diverse environments.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off and PID Control combined
Specifications Control Output
SSR voltage output
Specifications Dimensions
48 x 48 mm (8 pin plug type)
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 2kV)
Specifications List Price
51.95 USD
Specifications Note
8-pin socket (PG-08, PS-08(N)) is sold separately.Setting accuracy: Below 100 ? model is F.S. ±3%Below 100? model is F.S. ±4%, Over 100? model is F.S. ±3%The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω
Specifications Sampling Cycle
100 ms
Specifications Sensor Input Type
RTD: DPt100 ohms
Specifications Setting Accuracy
F.S. ±2%(Room Temperature 23â±5â)
Specifications Setting Range
0 to 200 ºC
Specifications Setting Type
Dial Setting
Specifications Shipping Weight
69 g
Specifications Size
DIN W48ÃH48mm
Specifications Temperature Range
0 to 200 ºC
Specifications Temperature Unit
ºC
Specifications Type
Analog
Specifications Unit
C
Specifications Unit Weight
107 g
Specifications Weight
0.37 lb
