Autonics USA 100-240V AC Voltage Temperature Controller
Autonics USA 100-240V AC Voltage Temperature Controller
SKU:PRO-8e3baf
Enhanced Autonics USA 100-240V AC Voltage Temperature Controller - Dual PID Control, Solid State Output, 4-Digit LED Display, Alarm, Canadian & US Standards Approval
Regular price
$164.95
Regular price
Sale price
$164.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller
$164.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller
$164.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

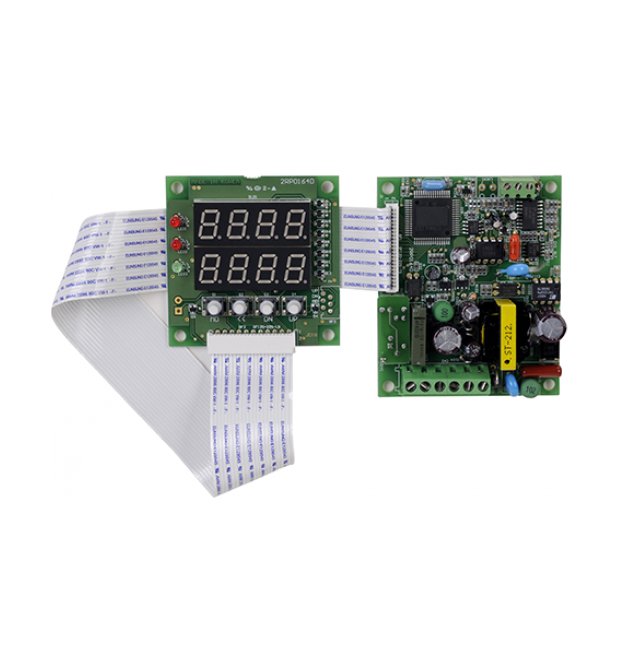

Experience precise temperature control with the Autonics USA 100-240V AC Voltage Temperature Controller. This dual PID board features a 4-digit LED display, dual PID control, solid-state output, and alarm functionalities. With approval from Canadian and US Standards by Underwriters' Laboratories (CURUS), this controller offers a wide range of control methods including On/Off, P, PD, PI, PIDF, and PIDS for versatile applications. The controller also boasts a compact design with dimensions of Control Board 65 x 78 mm and Display Board 60 x 60 mm, making it suitable for diverse environments with ambient temperatures ranging from -10 to 50°C. Whether for industrial or commercial use, this temperature controller ensures accuracy and reliability.
Product Specifications
Specifications Alarm Output
Alarm1
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
SSR voltage output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
Control Board 65 x 78 mm, Display Board 60 x 60 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC(0.1 to 100.0ºC) Variable (at ON/OFF Control)
Specifications Integral Time Range
0 to 3600 s
Specifications List Price
164.95 USD
Specifications Note
Environment resistance is rated at no freezing or condensation.The weight includes packaging. The weight in parenthesis is for unit only.
Specifications Option Output
Event1(Relay)/Event2(LED)
Specifications Proportional Band
0.0 to 100.0
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Thermocouple Input Specification
J(IC) | K(CA)
Specifications Type
Dual PID board
Specifications Unit Weight
113.5 g
Specifications Weight
0.42 lb
