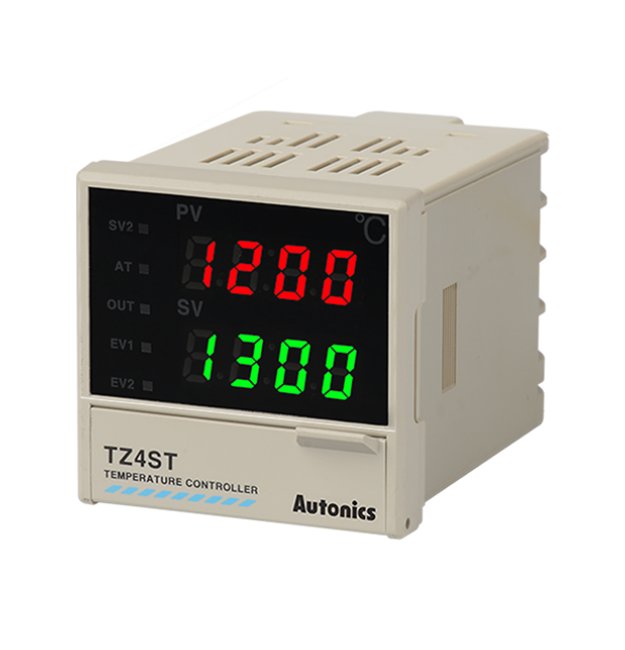

Autonics USA 100-240V AC Voltage Temperature Controller - Dual PID
Autonics USA 100-240V AC Voltage Temperature Controller - Dual PID
SKU:PRO-8d1b6e
Achieve precise temperature regulation with Autonics 100-240V AC Voltage Temp Controller - Dual PID. Ideal for institutional and industrial use.
Regular price
$149.95
Regular price
Sale price
$149.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller - Dual PID
$149.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller - Dual PID
$149.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance temperature control with the Autonics USA 100-240V AC Voltage Temperature Controller featuring a 1/16 DIN digital display, SSR output, and dual PID control capability. This controller supports On/Off, P, PD, PI, PIDF, and PIDS control methods for precise temperature regulation. With approval from CURUS, CE, and adherence to stringent environmental conditions, ensure reliable and accurate temperature management in diverse settings. The 4-digit LED display, multiple input specifications, adjustable alarm settings, and versatile control parameters make this controller ideal for industrial, commercial, and institutional applications.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
SSR voltage output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
48 x 48 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
149.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
162 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
218 g
Specifications Weight
0.49 lb
