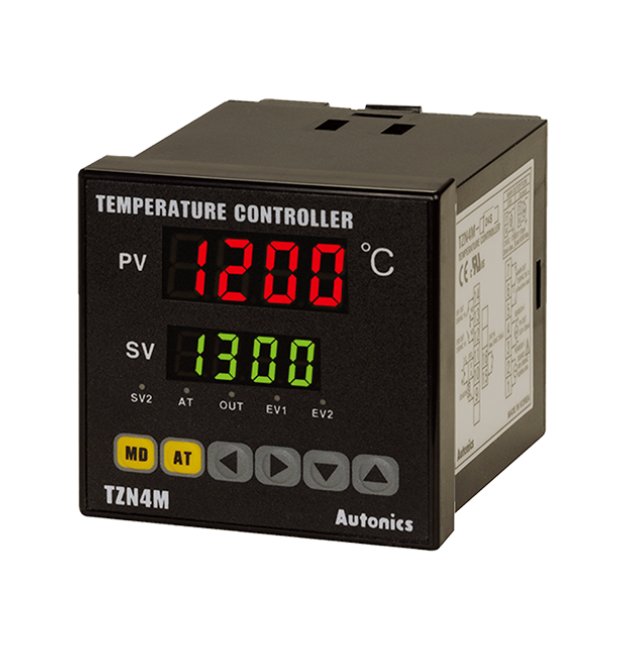

Autonics USA 100-240V AC Voltage Temperature Controller (PID)
Autonics USA 100-240V AC Voltage Temperature Controller (PID)
SKU:PRO-3663ef
Precise Autonics USA 100-240V AC Voltage Temperature Controller for reliable temperature regulation in various settings.
Regular price
$170.95
Regular price
Sale price
$170.95
Unit price
per
Initiate Order
Autonics USA 100-240V AC Voltage Temperature Controller (PID)
$170.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V AC Voltage Temperature Controller (PID)
$170.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240V AC Voltage Temperature Controller is a top-of-the-line solution for precise temperature regulation. Featuring a compact design with dimensions of 72x72mm, this digital controller offers versatile control methods including On/Off, P, PD, PI, PIDF, and PIDS control. With a fast 500ms sampling cycle and current output ranging from 4 to 20mA, it ensures accurate and responsive temperature management. Additionally, it meets Canadian and US Standards by Underwriters' Laboratories (CURUS) and European Conformity (CE), guaranteeing reliability and quality. Ideal for a wide range of applications, this controller boasts a dual PID type, 4-digit 7-segment LED display, multi-input compatibility, and advanced settings like adjustable alarm outputs and control parameters.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Current Output (DC 4 to 20mA)
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
72 x 72 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Height
72 mm
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
170.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
246 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
355 g
Specifications Weight
0.73 lb
Specifications Width
72 mm
