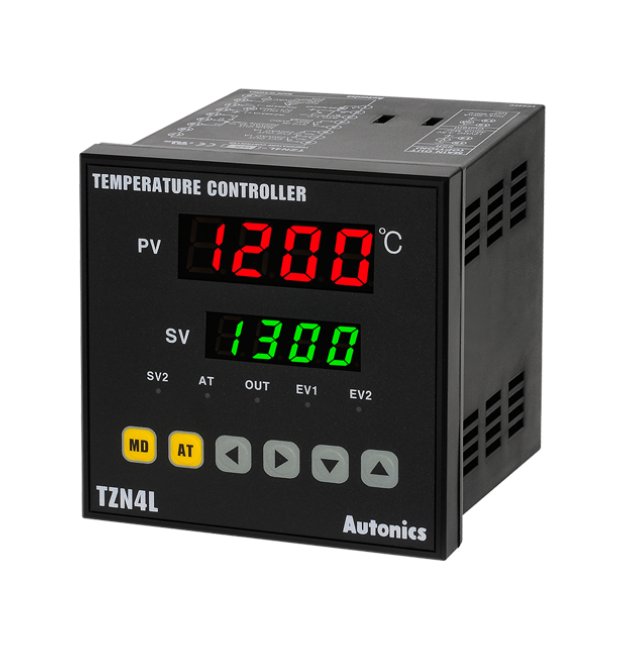

Autonics USA 100-240V Digital PID Temperature Controller
Autonics USA 100-240V Digital PID Temperature Controller
SKU:PRO-571072
Achieve precise temperature control with this 100-240V digital PID controller from Autonics USA.
Regular price
$182.95
Regular price
Sale price
$182.95
Unit price
per
Initiate Order
Autonics USA 100-240V Digital PID Temperature Controller
$182.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240V Digital PID Temperature Controller
$182.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precise temperature control with the Autonics USA 100-240V Digital PID Temperature Controller. This 1/4 DIN controller offers On/Off Control, PIDF, and more, ensuring efficient operation. With approval from CURUS, CE standards, and a wide input range for thermocouples and RTDs, this controller is ideal for applications requiring accuracy and reliability in environmental conditions. The 4-Digit LED display, current output, and alarm features enhance usability, making it a versatile choice for both consumer and institutional needs.
Product Specifications
Specifications Alarm Output
Alarm1+PV transmission
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Current Output (DC 4 to 20mA)
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
96 x 96 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
182.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1, PV transmission (DC4-20mA)
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
303 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
474 g
Specifications Weight
0.97 lb
