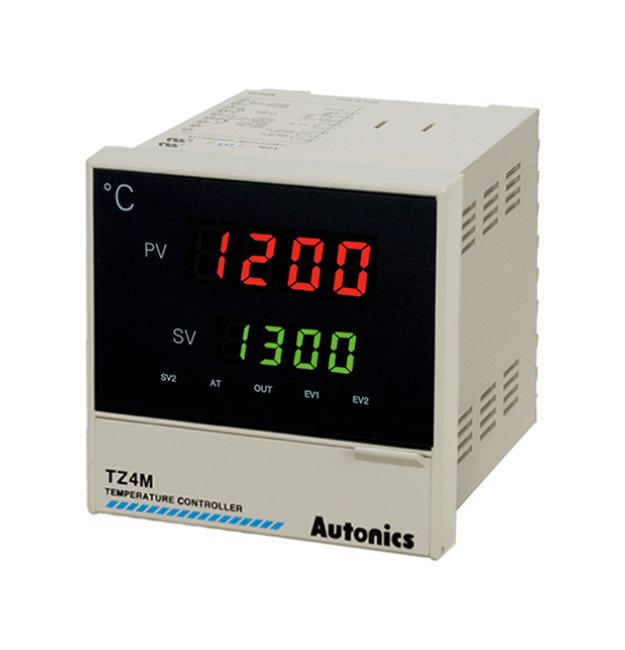

Autonics USA 100-240VAC AC Voltage Temperature Controller
Autonics USA 100-240VAC AC Voltage Temperature Controller
SKU:PRO-10bc09
Enhance precision temperature control with the Autonics USA 100-240VAC AC Voltage Temperature Controller. Compact and versatile with safety certifications.
Regular price
$188.95
Regular price
Sale price
$188.95
Unit price
per
Initiate Order
Autonics USA 100-240VAC AC Voltage Temperature Controller
$188.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240VAC AC Voltage Temperature Controller
$188.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240VAC AC Voltage Temperature Controller is a state-of-the-art PID control system designed for precision temperature management. With a compact W72xH72mm size and digital interface, this controller offers versatile control methods including On/Off, PID, and more. It features relay output, 2 alarm outputs, RS485 connectivity, and supports various thermocouple and RTD inputs. This controller is compliant with Canadian, US, European safety standards and offers accurate temperature control within -10 to 50 ºC ambient temperature.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2+RS485 comm
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
72 x 72 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
72 mm
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
188.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2, RS485 communication
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
228 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
360 g
Specifications Weight
0.82 lb
Specifications Width
72 mm
