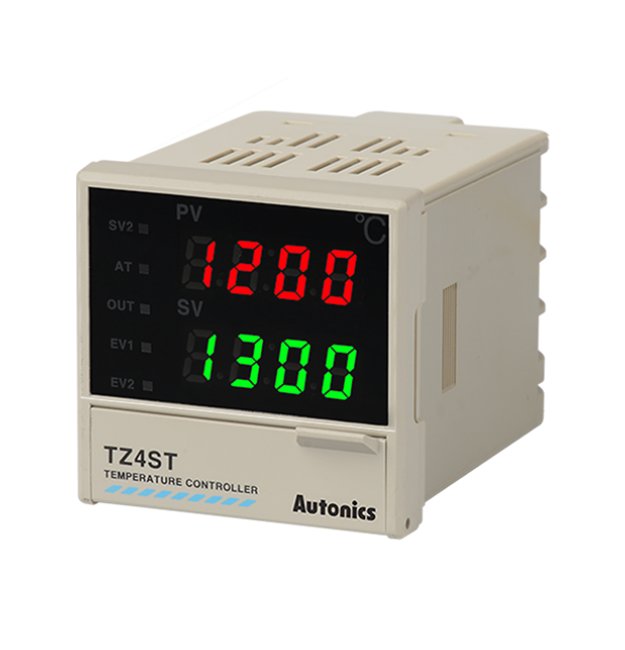

Autonics USA 100-240VAC Alternating Current Temperature Controller
Autonics USA 100-240VAC Alternating Current Temperature Controller
SKU:PRO-c58bda
Achieve precision temperature control with Autonics USA 100-240VAC Alternating Current Temperature Controller. Dual PID, compact size, UL and CE approved.
Regular price
$149.95
Regular price
Sale price
$149.95
Unit price
per
Initiate Order
Autonics USA 100-240VAC Alternating Current Temperature Controller
$149.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100-240VAC Alternating Current Temperature Controller
$149.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 100-240VAC Alternating Current Temperature Controller offers precise temperature control with a range of advanced features. With a compact 48 x 48 mm size, this dual PID controller supports various control methods including On/Off, P, PD, PI, PIDF, and PIDS control. It meets Canadian and US safety standards by Underwriters' Laboratories, as well as European Conformity requirements. The controller boasts a 4-Digit 7-Segment LED display for clear visibility and supports multiple input specifications such as thermocouples, RTDs, and analog inputs, ensuring versatile compatibility across applications. This reliable temperature controller is ideal for both consumer and institutional buyers seeking top-notch performance and compliance.
Product Specifications
Specifications Alarm Output
Alarm1+PV transmission
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
48 x 48 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
149.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1, PV transmission (DC4-20mA)
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
162 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
218 g
Specifications Weight
0.49 lb
