Autonics USA 100 to 240V AC Temperature Controller
Autonics USA 100 to 240V AC Temperature Controller
SKU:PRO-406a54
Precision temperature control with dual PID, wide voltage range, LED display, and alarm outputs. Meets UL, CE standards.
Regular price
$179.95
Regular price
Sale price
$179.95
Unit price
per
Initiate Order
Autonics USA 100 to 240V AC Temperature Controller
$179.95
Quantity: 1
Claim Your Seller Account
Autonics USA 100 to 240V AC Temperature Controller
$179.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

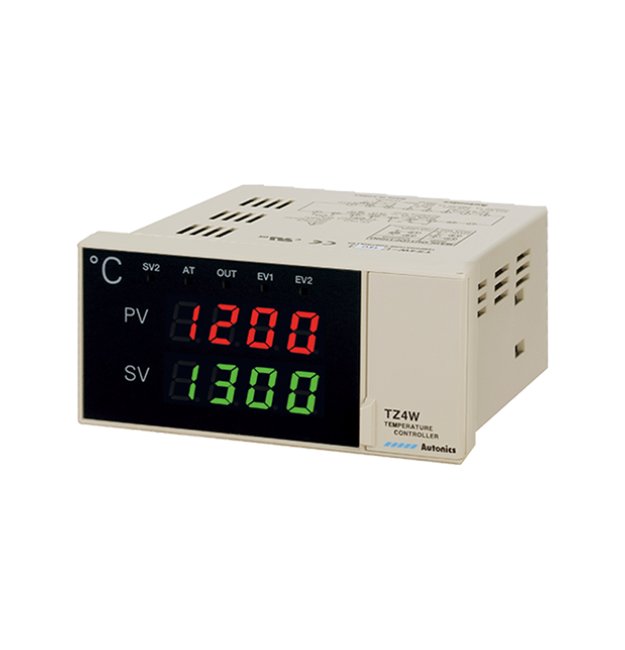

The Autonics USA 100 to 240V AC Temperature Controller is a reliable solution for precise temperature management. With a wide AC voltage range, dual PID control, and a variety of input specifications, this controller offers flexibility and accuracy in temperature regulation. It meets Canadian and U.S. UL, CE standards, ensuring safe and compliant operation in diverse environments. The controller's LED display, multiple alarm outputs, and event options enhance monitoring and control capabilities, making it ideal for industrial, commercial, and institutional applications.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2+PV transmission
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Current Output (DC 4 to 20mA)
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
96 x 96 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
48 mm
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
179.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2, PV transmission (DC4-20mA)
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
246 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
365 g
Specifications Weight
0.82 lb
Specifications Width
96 mm
