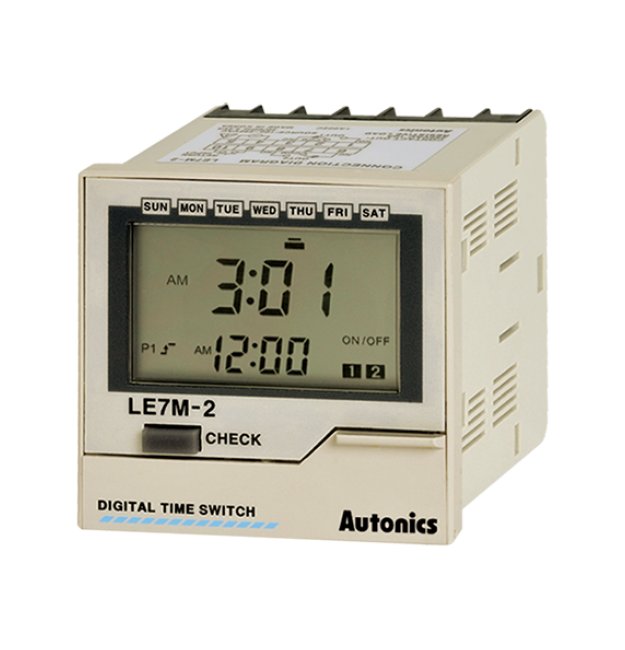

Autonics USA 110-220V AC Timer -10-55°C LCD Year/Weekly W72xH72mm
Autonics USA 110-220V AC Timer -10-55°C LCD Year/Weekly W72xH72mm
SKU:PRO-4ec271
Autonics USA 110-220V AC Timer with LCD display, SPDT Outputs, and ±15 seconds/month deviation. Ideal for precise time control in varied climates.
Regular price
$146.95
Regular price
Sale price
$146.95
Unit price
per
Initiate Order
Autonics USA 110-220V AC Timer -10-55°C LCD Year/Weekly W72xH72mm
$146.95
Quantity: 1
Claim Your Seller Account
Autonics USA 110-220V AC Timer -10-55°C LCD Year/Weekly W72xH72mm
$146.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 110-220 Volt Alternating Current Timer is a reliable solution for precise time-controlled operations in varying environments. With LCD display, this timer offers 3 operation modes and supports Year 24/Week 48 Steps settings. Featuring 2 SPDT Outputs and a robust Terminal Block, it ensures stable performance. With ±15 seconds/month time deviation and a wide operating temperature range of -10 to 55°C, this timer is suitable for diverse applications. Additionally, its memory protection ensures data integrity for approximately 5 years, making it an ideal choice for institutional and government procurement requirements.
Product Specifications
Function Function
Weekly/Yearly timer
Note Note
The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.The weight includes packaging. The weight in parenthesis is for unit only.
Specifications Alternating Current Ac Voltage
110 to 220 V
Specifications Approximate Weight
272 g
Specifications Contact Type
Single Pole Double Throw (SPDT) (1C) 2EA
Specifications Control Output Relay
Single Pole Double Throw (SPDT) (1C): 2
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
72 mm
Specifications List Price
146.95 USD
Specifications Memory Protection
Approximate 5 Years
Specifications Number Of Setting Steps
Weekly 48 Steps, Yearly 24 steps
Specifications Operation Method
Time Setting
Specifications Output Operation
Cycle | On/Off | Pulse
Specifications Terminal
Terminal Block
Specifications Timemonth Deviation
15 s/month
Specifications Time Deviation
± 15 seconds/month (Ambient Temperature: 25ºC) (± 4 seconds/week)
Specifications Type
Liquid Crystal Display (LCD)
Specifications Weight
0.18 lb
Specifications Width
72 mm
