Autonics USA 12V DC Ambient Temperature Timer
Autonics USA 12V DC Ambient Temperature Timer
SKU:PRO-2bdd4c
Precise 12V DC timer with versatile setting options and reliable performance in -10 to 50°C temperatures. CE and cULus certified.
Regular price
$43.95
Regular price
Sale price
$43.95
Unit price
per
Initiate Order
Autonics USA 12V DC Ambient Temperature Timer
$43.95
Quantity: 1
Claim Your Seller Account
Autonics USA 12V DC Ambient Temperature Timer
$43.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

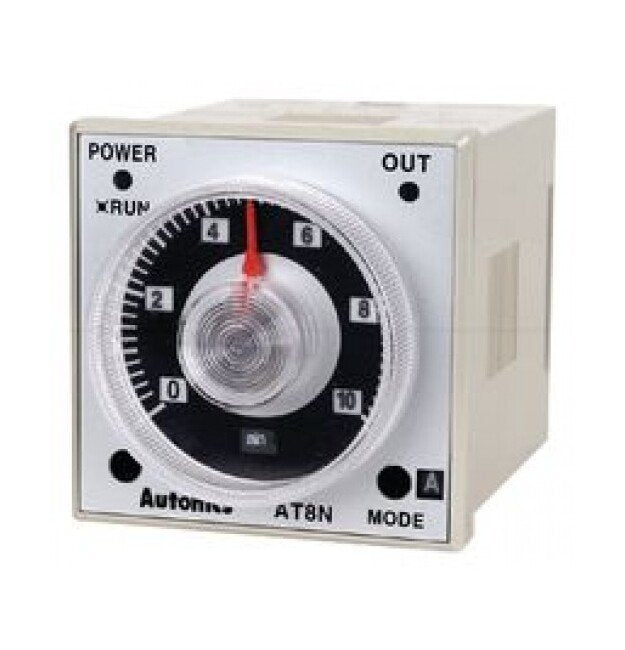

The Autonics USA 12V DC Ambient Temperature Timer offers precise time-setting operations with output options including flicker, interval, and power on delay. It features a wide range of setting options from seconds to hours, making it versatile for various applications. Certified with European Conformity (CE) and cULus listings, this timer operates reliably in temperatures ranging from -10 to 50°C, catering to both consumer and institutional needs.
Product Specifications
Accessories Accessories
Bracket
Note Note
Sockets (8-pin sockets: PG-08, PS-08(N)/11-pin sockets: PG-11, PS-11(N)) are sold separately.Refer to time specifications for control time setting range by model.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
86.71 g
Specifications Approximate Weight
134.12 g
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2 or Instantaneous Single Pole Double Throw (SPDT) (1C): 1 + Time-Limit SPDT (1C): 1 Depending on Output Operation Mode
Specifications Direct Current Dc Voltage
12 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications List Price
43.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Power On Delay
Specifications Setting Range
0.05 to 0.5 Hour | 0.05 to 0.5 Minute | 0.05 to 0.5 Second | 0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 0.5 to 5 Hour | 0.5 to 5 Minute | 0.5 to 5 Second | 1 to 10 Hour | 1 to 10 Minute | 1 to 10 Second | 10 to 100 Hour | 5 to 50 Hour
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Power On Start
Specifications Weight
0.2 lb
