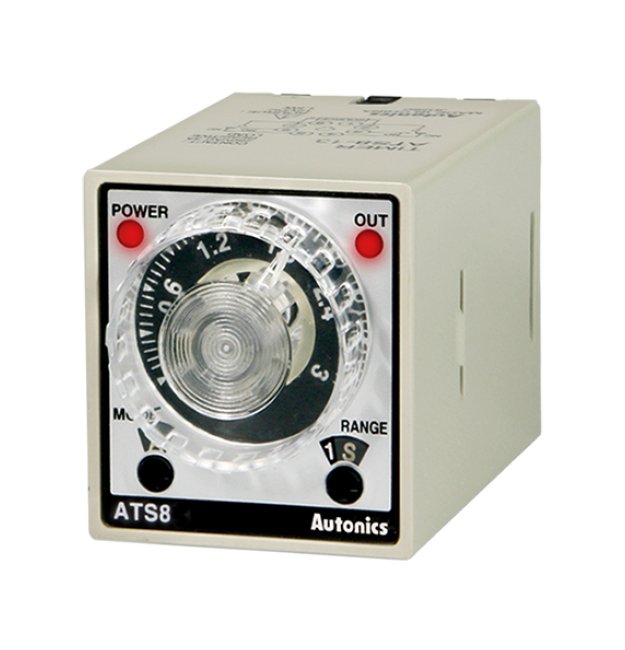

Autonics USA 12V DC Small Analog Timer
Autonics USA 12V DC Small Analog Timer
SKU:PRO-e618f9
Versatile Autonics USA 12V DC Small Analog Timer with 6 modes, multi-range settings, and CE/cULus approval for precise time control.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics USA 12V DC Small Analog Timer
$29.95
Quantity: 1
Claim Your Seller Account
Autonics USA 12V DC Small Analog Timer
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 12V DC Small Analog Timer is a versatile and reliable timer suitable for various applications. With 6 modes and multi-range settings from 0.3 seconds to 30 hours, this timer offers precise time control. It features DPDT or 2 SPDT options, an 8-pin plug terminal, and control outputs for different operations. Approved by CE and cULus, this timer operates in temperatures ranging from -10 to 55°C, meeting stringent environmental standards. Compact, efficient, and easy to set up, this timer is an ideal choice for both consumer and institutional buyers.
Product Specifications
Accessories Accessories
Bracket
Function Function
Power on Start
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT) (2C) or Time Limit Single Pole Double Throw (SPDT) (1C) + Instantaneous Single Pole Double Throw (SPDT) (1C):Selectable
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2 or Instantaneous Single Pole Double Throw (SPDT) (1C): 1 + Time-Limit SPDT (1C): 1 Depending on Output Operation Mode
Specifications Control Time Setting Range
0.3 Second to 30 Hour
Specifications Direct Current Dc Voltage
12 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Power On Delay
Specifications Setting Range
0.3 to 3 Hour | 0.3 to 3 Minute | 0.3 to 3 Second | 3 to 30 Hour | 3 to 30 Minute | 3 to 30 Second
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Power On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
