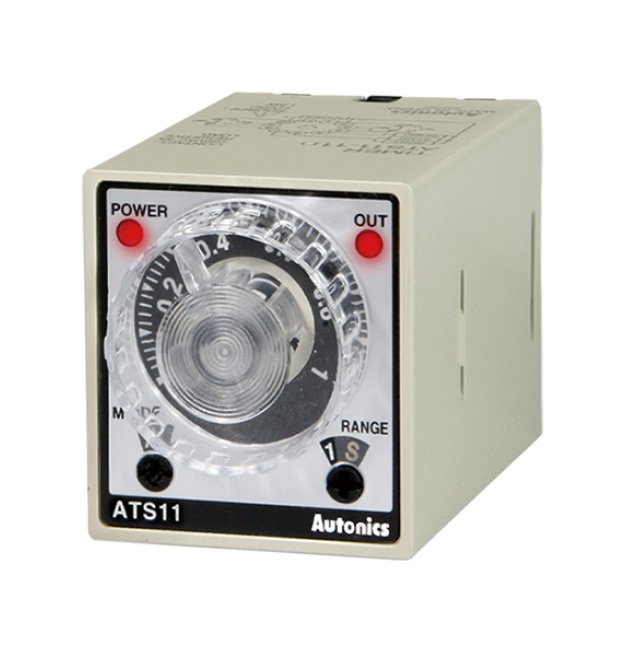

Autonics USA 12V DC Timer - Ambient Temp -10 to 55ºC
Autonics USA 12V DC Timer - Ambient Temp -10 to 55ºC
SKU:PRO-6d6147
Versatile 12V DC timer with adjustable settings, multiple output modes, and -10 to 55ºC ambient temperature range.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics USA 12V DC Timer - Ambient Temp -10 to 55ºC
$29.95
Quantity: 1
Claim Your Seller Account
Autonics USA 12V DC Timer - Ambient Temp -10 to 55ºC
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 12 Volt DC Timer is a reliable time-setting device suitable for various applications. With adjustable settings ranging from 0.1 second to 10 hours, this timer provides versatility in controlling operations. It features multiple output operation modes such as flicker, interval, and signal delays, meeting diverse timing needs. This timer, CE and cULus listed, operates effectively in ambient temperatures from -10 to 55 degrees Celsius, ensuring consistent performance in demanding environments.
Product Specifications
Accessories Accessories
Bracket
Function Function
Signal on Start
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT)(2C)
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2
Specifications Control Time Setting Range
0.1 Second to 10 Hour
Specifications Direct Current Dc Voltage
12 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Signal Off Delay | Signal On Delay | Signal On-Off Delay
Specifications Setting Range
0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 1 to 10 Hour | 1 to 10 Minute | 1 to 10 Second
Specifications Signal Input Method
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Terminal
11-Pin Plug
Specifications Time Operation
Signal On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
