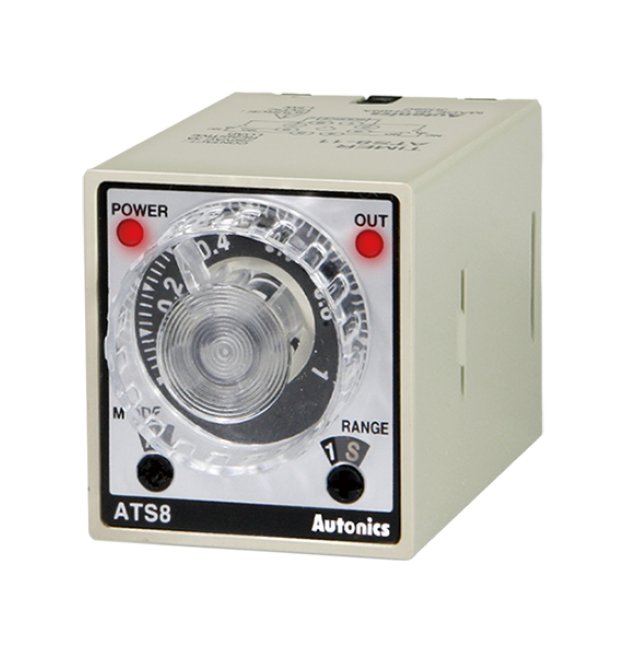

Autonics USA 12VDC Small Analog Timer - 6-Mode Multi-Range DPDT/SPDT Controller
Autonics USA 12VDC Small Analog Timer - 6-Mode Multi-Range DPDT/SPDT Controller
SKU:PRO-61fa3f
Precise Autonics USA 12VDC Analog Timer - 6 Modes, Multi-Range, DPDT/SPDT Controller for accurate time operations.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics USA 12VDC Small Analog Timer - 6-Mode Multi-Range DPDT/SPDT Controller
$29.95
Quantity: 1
Claim Your Seller Account
Autonics USA 12VDC Small Analog Timer - 6-Mode Multi-Range DPDT/SPDT Controller
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA Small Analog Timer is a reliable 6-mode controller designed for precise time-setting operations, suitable for various applications. With a versatile setting range from 0.1 second to 10 hours, this timer offers flexibility and accuracy. It features DPDT/SPDT options and operates at 12VDC, making it ideal for controlling intervals, delays, and flicker sequences. Approved for European Conformity (CE) and cULus Listing, it meets high industry standards. This analog timer is compact, durable, and functions flawlessly in environments with ambient temperatures ranging from -10 to 55 degrees Celsius.
Product Specifications
Accessories Accessories
Bracket
Function Function
Power on Start
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT) (2C) or Time Limit Single Pole Double Throw (SPDT) (1C) + Instantaneous Single Pole Double Throw (SPDT) (1C):Selectable
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2 or Instantaneous Single Pole Double Throw (SPDT) (1C): 1 + Time-Limit SPDT (1C): 1 Depending on Output Operation Mode
Specifications Control Time Setting Range
0.1 Second to 10 Hour
Specifications Direct Current Dc Voltage
12 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Power On Delay
Specifications Setting Range
0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 1 to 10 Hour | 1 to 10 Minute | 1 to 10 Second
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Power On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
