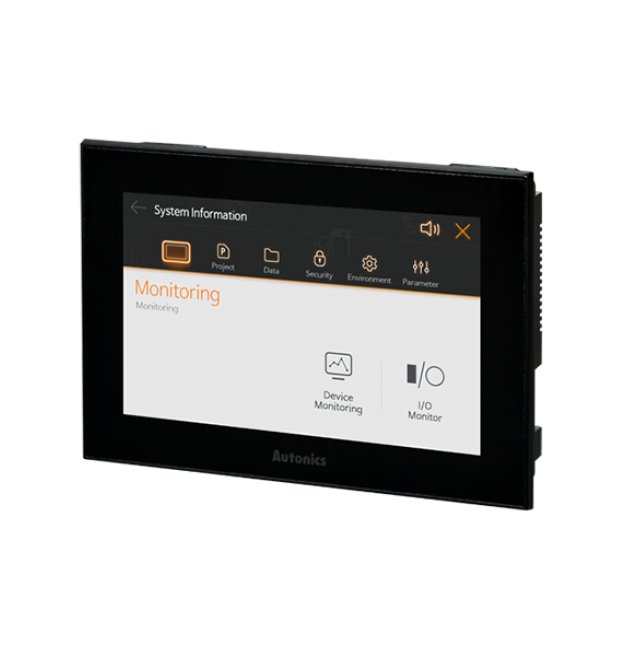

Autonics USA 152.4 x 94.44mm HMI Display - 24V DC Voltage
Autonics USA 152.4 x 94.44mm HMI Display - 24V DC Voltage
SKU:PRO-c44bbf
Cutting-edge Autonics USA HMI display with 152.4 x 94.44mm viewing area, 24V DC voltage, and robust connectivity options for seamless control and monitoring.
Regular price
$560.95
Regular price
Sale price
$560.95
Unit price
per
Initiate Order
Autonics USA 152.4 x 94.44mm HMI Display - 24V DC Voltage
$560.95
Quantity: 1
Claim Your Seller Account
Autonics USA 152.4 x 94.44mm HMI Display - 24V DC Voltage
$560.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience cutting-edge control with the Autonics USA Human-Machine Interface (HMI). This 152.4 x 94.44mm display is equipped with 64MB graphic drawing memory, analog resistive touch interface, and interfaces like RS232C, Ethernet, and USB for seamless connectivity. With an IP65 protection structure, CE/KC approval, and Real Time Clock, this HMI ensures reliability in environments with temperatures ranging from 0 to 50°C. Unlock precise control and intuitive user experience with atDesigner | atLogic software, supporting English and Korean graphic languages. Weighing 742g, this lightweight HMI is ideal for various industrial applications.
Product Specifications
Accessories Accessories
Fixing Bracket: 6, Battery (Included)
Display Specifications Display Area
152.4 x 94.44 mm
Display Specifications Display Color
16,777,216
Display Specifications Display Resolution
800 x 480 dots
Display Specifications Display Type
Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Bitmap ASCII and Vector Font
Graphic Drawing Performance Number Of User Screen
100 Pages
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
540 g
Specifications Approximate Weight
742 g
Specifications Dedicated Software
atDesigner | atLogic
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
Institute of Electrical and Electronics Engineers (IEEE) 802.3(U), 10/100Base-T
Specifications Graphic Drawing Memory
64 MB
Specifications List Price
560.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel, International Electrotechnical Commission (IEC) Standard)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
1 EA
Specifications Rs422 Interface
1 EA
Specifications Touch Method
Analog Touch (Resistive Type)
Specifications Type
Human-Machine Interface (HMI)
Specifications Universal Serial Bus Usb Device Interface
1 EA
Specifications Universal Serial Bus Usb Host Interface
1 EA
Specifications Weight
0.2 lb
