Autonics USA 152.4x94.44 mm 24V DC HMI Display
Autonics USA 152.4x94.44 mm 24V DC HMI Display
SKU:PRO-4daa84
Enhance control with Autonics USA 152.4x94.44 mm HMI. TFT LCD, 64MB memory, IP65, CE/KC certified.
Regular price
$473.95
Regular price
Sale price
$473.95
Unit price
per
Initiate Order
Autonics USA 152.4x94.44 mm 24V DC HMI Display
$473.95
Quantity: 1
Claim Your Seller Account
Autonics USA 152.4x94.44 mm 24V DC HMI Display
$473.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

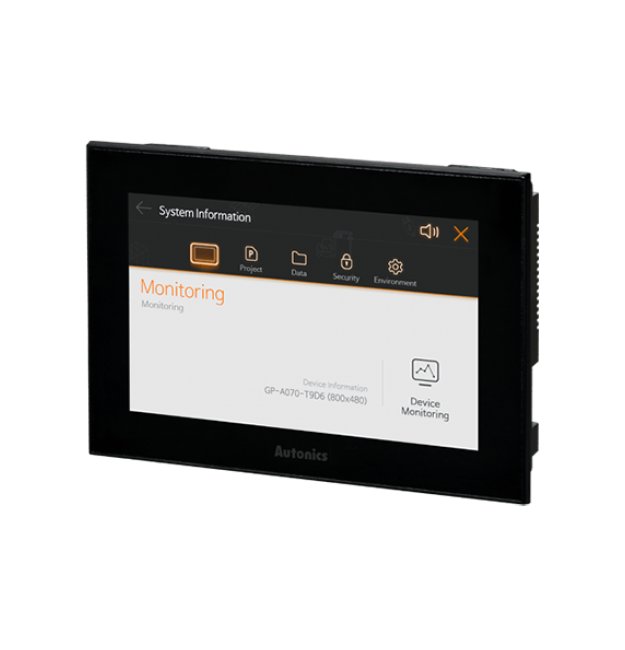

The Autonics USA 152.4 x 94.44 mm Human-Machine Interface (HMI) offers a reliable solution for seamless man-machine interactions. With a 64 MB graphic drawing memory, analog resistive touch, and interfaces including RS232C, Ethernet, and USB, it ensures versatile connectivity. This HMI, weighing 706 g, features a TFT color LCD display with 800 x 480 dots resolution and IP65 protection. It meets European Conformity (CE) and Korean Certification (KC) standards, making it a robust choice for industrial applications.
Product Specifications
Accessories Accessories
Fixing Bracket: 6, Battery (Included)
Display Specifications Display Area
152.4 x 94.44 mm
Display Specifications Display Color
16,777,216
Display Specifications Display Resolution
800 x 480 dots
Display Specifications Display Type
Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Bitmap ASCII and Vector Font
Graphic Drawing Performance Number Of User Screen
100 Pages
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
520 g
Specifications Approximate Weight
706 g
Specifications Dedicated Software
atDesigner | atLogic
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
Institute of Electrical and Electronics Engineers (IEEE) 802.3(U), 10/100Base-T
Specifications Graphic Drawing Memory
64 MB
Specifications List Price
473.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel, International Electrotechnical Commission (IEC) Standard)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
2 EA
Specifications Touch Method
Analog Touch (Resistive Type)
Specifications Type
Human-Machine Interface (HMI)
Specifications Universal Serial Bus Usb Device Interface
1 EA
Specifications Universal Serial Bus Usb Host Interface
1 EA
Specifications Weight
0.2 lb
