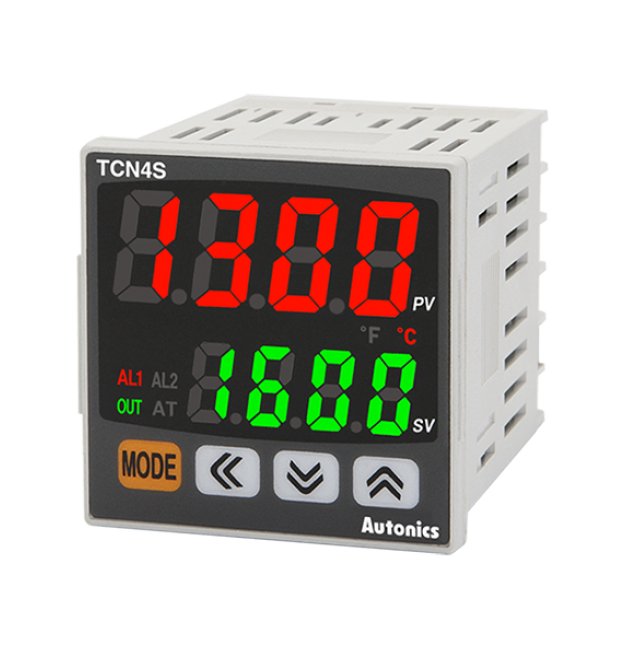

Autonics USA 24V AC Voltage Temperature Controller
Autonics USA 24V AC Voltage Temperature Controller
SKU:PRO-c6f7ec
Precise 1/16 DIN temperature controller with dual display, relay & SSR outputs, 2 alarm outputs, and PID control for diverse industrial settings.
Regular price
$87.95
Regular price
Sale price
$87.95
Unit price
per
Initiate Order
Autonics USA 24V AC Voltage Temperature Controller
$87.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V AC Voltage Temperature Controller
$87.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 24V AC Voltage Temperature Controller is a high-quality 1/16 DIN controller with dual display, offering precise PID control for temperature regulation. It features relay & SSR outputs, 2 alarm outputs, and a range of input options including thermocouples and RTDs. This controller is built to meet Canadian and US Standards by Underwriters' Laboratories (CURUS) and European Conformity (CE), ensuring reliability and performance in diverse environments. With a compact design, fast sampling cycle, and adjustable control methods, this economical dual display controller is ideal for a wide range of industrial applications.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alternating Current Ac Voltage
24 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Relay+SSR(AC/DC power) | Relay+SSRP(AC power)
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
48 x 48 mm
Specifications Direct Current Dc Voltage
24 to 48 V
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
87.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Note
In case of the AC voltage model, SSR drive output method (standard ON/OFF control, cycle control, phase control) is available to select.Display accuracy:At room temperature (23? ±5?)Thermocouple R (PR), S (PR), below 200?: (PV ±0.5% or ±3?, select the higher one) ±1-digitThermocouple R (PR), S (PR), over 200?: (PV ±0.5% or ±2?, select the higher one) ±1-digitThermocouple L (IC), RTD Cu50?: (PV ±0.5% or ±2?, select the higher one) ±1-digitOut of room temperature rangeThermocouple R (PR), S (PR), below 200?: (PV ±1.0% or ±6?, select the higher one) ±1-digitThermocouple R (PR), S (PR), over 200?: (PV ±0.5% or ±5?, select the higher one ±1-digitThermocouple L (IC), RTD Cu50?: (PV ±0.5% or ±3?, select the higher one) ±1-digitFor TCN4S-?-P, add ±1? by accuracy standard.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Alarm 1/2
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
100 ms
Specifications Shipping Weight
100 g
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC) | R(PR) | S(PR) | T(CC)
Specifications Type
Economical Dual Display
Specifications Unit Weight
147 g
Specifications Weight
1 lb
