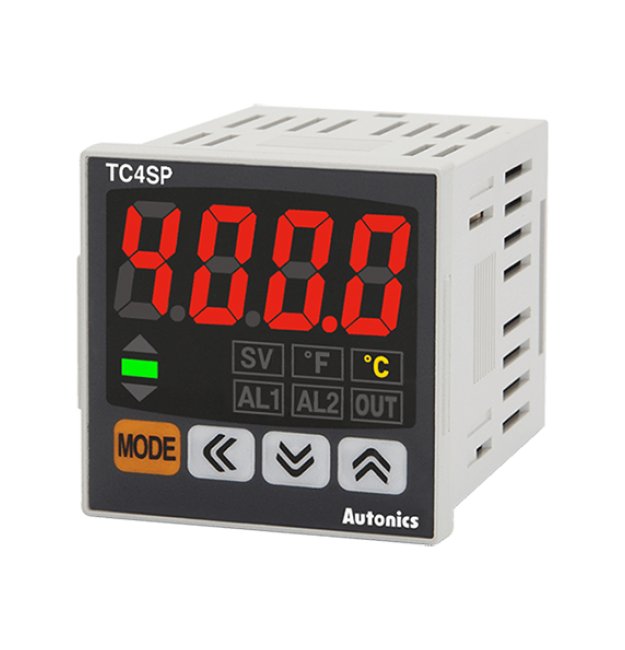

Autonics USA 24V AC Voltage Temperature Controller
Autonics USA 24V AC Voltage Temperature Controller
SKU:PRO-a30619
Enhance temperature control with the Autonics USA 24V AC Voltage Controller. Expertly designed for accuracy and compliance, featuring PID control and precise temperature management capabilities.
Regular price
$69.95
Regular price
Sale price
$69.95
Unit price
per
Initiate Order
Autonics USA 24V AC Voltage Temperature Controller
$69.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V AC Voltage Temperature Controller
$69.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your temperature control system with the Autonics USA 24V AC Voltage Temperature Controller. This state-of-the-art controller features PID control, 4-digit LED display, and a wide range of input specifications including Thermocouple and RTD. With approval from CURUS, CE, and precise control parameters, this controller ensures accurate temperature management in environments ranging from -10 to 50°C. Meet the highest standards of temperature control with Autonics technology.
Product Specifications
Specifications Alternating Current Ac Voltage
24 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Indicator
Specifications Control Period
0.5 to 120.0 s
Specifications Derivative Time
0 to 9999 s
Specifications Direct Current Dc Voltage
24 to 48 V
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Accuracy Thermocouple
At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digitOut of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
69.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu50Ω | DPt100Ω
Specifications Sampling Cycle
100 ms
Specifications Shipping Weight
76 g
Specifications Size
DIN W48ÃH48mm
Specifications Thermocouple Input Specification
J(IC) | K(CA) | L(IC)
Specifications Unit Weight
123 g
Specifications Weight
0.2 lb
