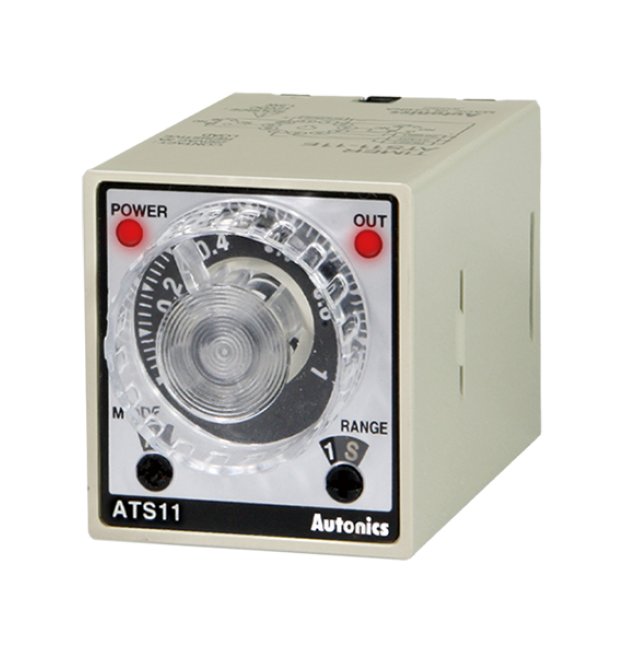

Autonics USA 24V Analog Timer - Multi-Range SPDT Controller
Autonics USA 24V Analog Timer - Multi-Range SPDT Controller
SKU:PRO-23a6e4
Versatile Autonics USA 24V Analog Timer with 6 modes, multi-range settings, and SPDT control outputs for precise industrial operations.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics USA 24V Analog Timer - Multi-Range SPDT Controller
$29.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V Analog Timer - Multi-Range SPDT Controller
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 24V Analog Timer is a versatile and reliable controller designed for precise time settings in industrial applications. With 6 modes and multi-range options from 0.3 seconds to 30 hours, this timer offers flexibility in operation. It features an 11-Pin plug for easy installation, SPDT control outputs, and approval from European Conformity (CE) and cULus. Operating in an ambient temperature range of -10 to 55°C, this timer ensures efficient performance even in challenging environments.
Product Specifications
Accessories Accessories
Bracket
Function Function
Signal on Start
Specifications Alternating Current Ac Voltage
24 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Instantaneous Single Pole Double Throw (SPDT) (1C) | Time Limit Single Pole Double Throw (SPDT) (1C)
Specifications Control Output
Instantaneous Single Pole Double Throw (SPDT) (1C): 1 | Time-Limit Single Pole Double Throw (SPDT) (1C): 1
Specifications Control Time Setting Range
0.3 Second to 30 Hour
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Signal Off Delay | Signal On Delay | Signal On-Off Delay
Specifications Setting Range
0.3 to 3 Hour | 0.3 to 3 Minute | 0.3 to 3 Second | 3 to 30 Hour | 3 to 30 Minute | 3 to 30 Second
Specifications Signal Input Method
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Terminal
11-Pin Plug
Specifications Time Operation
Signal On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
