Autonics USA 24V DC 108x43.2mm HMI Display
Autonics USA 24V DC 108x43.2mm HMI Display
SKU:PRO-be0383
Empower your systems with Autonics USA 24V DC 108x43.2mm HMI Display. Real-time control, vivid TFT display & IP65 protection. CE & KC certified.
Regular price
$325.95
Regular price
Sale price
$325.95
Unit price
per
Initiate Order
Autonics USA 24V DC 108x43.2mm HMI Display
$325.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V DC 108x43.2mm HMI Display
$325.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

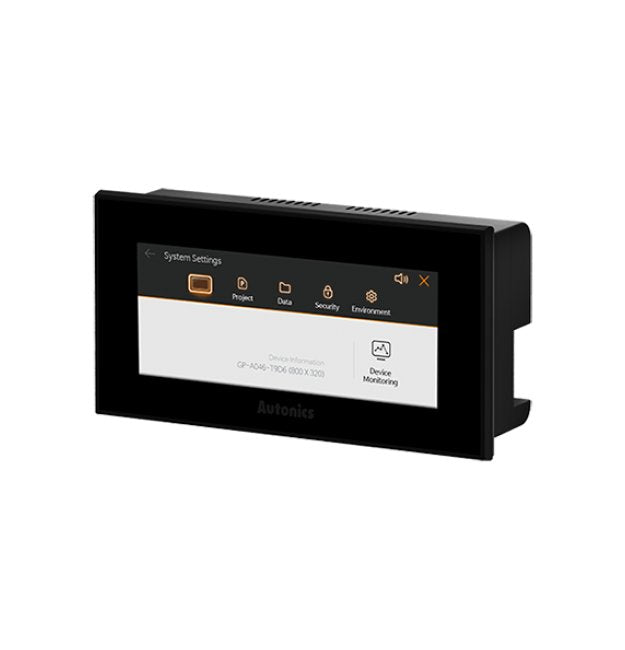

Enhance your control systems with the Autonics USA Human-Machine Interface (HMI). Boasting a 64 MB graphic drawing memory, pressure-sensitive touch method, Real-Time Clock, and a sleek 108 x 43.2 mm TFT LCD display with 16.7 million colors, this HMI ensures precise control and monitoring. With CE and KC certifications, IP65 protection, and compliance with IEEE standards, it meets the highest quality and safety benchmarks. Suitable for ambient temperatures from 0 to 50°C, this HMI is a reliable choice for industrial applications.
Product Specifications
Display Specifications Display Area
108 x 43.2 mm
Display Specifications Display Color
16,777,216
Display Specifications Display Resolution
800 x 320 px
Display Specifications Display Type
Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Bitmap and Vector Font
Graphic Drawing Performance Number Of User Screen
100 Pages
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
272 g
Specifications Approximate Weight
382 g
Specifications Dedicated Software
atDesigner
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
Institute of Electrical and Electronics Engineers (IEEE) 802.3(U), 10/100Base-T
Specifications Graphic Drawing Memory
64 MB
Specifications List Price
325.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel, International Electrotechnical Commission (IEC) Standard)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
1 EA
Specifications Rs422 Interface
1 EA
Specifications Touch Method
Pressure Sensitive Type
Specifications Type
Human-Machine Interface (HMI)
Specifications Universal Serial Bus Usb Device Interface
1 EA
Specifications Universal Serial Bus Usb Host Interface
1 EA
Specifications Weight
0.2 lb
