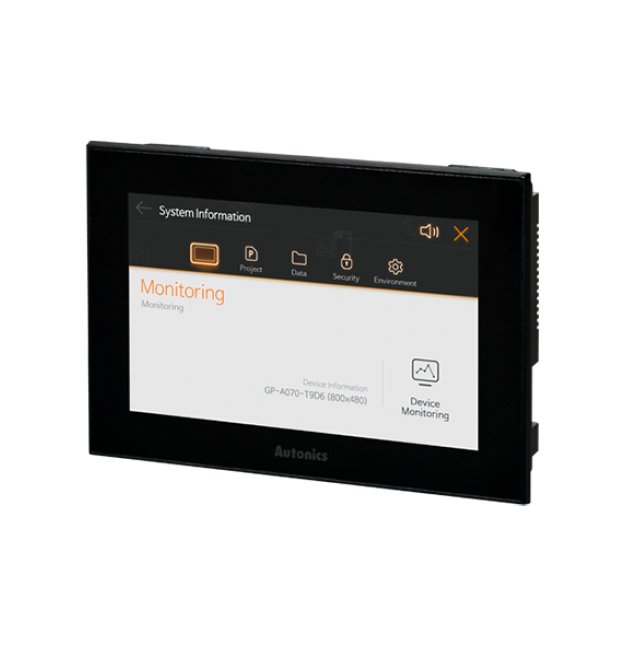

Autonics USA 24V DC HMI Display, 152.4 x 94.44mm
Autonics USA 24V DC HMI Display, 152.4 x 94.44mm
SKU:PRO-2d979f
Enhance operational efficiency with Autonics USA 24V DC HMI Display - 152.4 x 94.44mm, TFT LCD, Real Time Clock, CE/KC certified.
Regular price
$473.95
Regular price
Sale price
$473.95
Unit price
per
Initiate Order
Autonics USA 24V DC HMI Display, 152.4 x 94.44mm
$473.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V DC HMI Display, 152.4 x 94.44mm
$473.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience seamless Human-Machine Interface (HMI) interactions with the Autonics USA 24V DC HMI Display. This multifunctional HMI device offers a 64MB graphic drawing memory, analog touch interface, Real Time Clock feature, and a sturdy Ingress Protection (IP) 65 design. With a TFT color LCD display boasting 800 x 480 resolution and 16,777,216 colors, this HMI ensures clarity and precision in every operation. Additionally, it comes with atDesigner | atLogic software, meets CE and KC certifications, and supports multiple interfaces for enhanced connectivity and control.
Product Specifications
Accessories Accessories
Fixing Bracket: 6, Battery (Included)
Display Specifications Display Area
152.4 x 94.44 mm
Display Specifications Display Color
16,777,216
Display Specifications Display Resolution
800 x 480 dots
Display Specifications Display Type
Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Bitmap ASCII and Vector Font
Graphic Drawing Performance Number Of User Screen
100 Pages
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
520 g
Specifications Approximate Weight
706 g
Specifications Dedicated Software
atDesigner | atLogic
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
Institute of Electrical and Electronics Engineers (IEEE) 802.3(U), 10/100Base-T
Specifications Graphic Drawing Memory
64 MB
Specifications List Price
473.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel, International Electrotechnical Commission (IEC) Standard)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
1 EA
Specifications Rs422 Interface
1 EA
Specifications Touch Method
Analog Touch (Resistive Type)
Specifications Type
Human-Machine Interface (HMI)
Specifications Universal Serial Bus Usb Device Interface
1 EA
Specifications Universal Serial Bus Usb Host Interface
1 EA
Specifications Weight
0.2 lb
