Autonics USA 24V DC Miniature Analog Timer
Autonics USA 24V DC Miniature Analog Timer
SKU:PRO-1352b1
High-quality Autonics USA 24V DC Miniature Analog Timer with 0.5-5 sec setting, ideal for precise control in industrial environments.
Regular price
$26.95
Regular price
Sale price
$26.95
Unit price
per
Initiate Order
Autonics USA 24V DC Miniature Analog Timer
$26.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V DC Miniature Analog Timer
$26.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

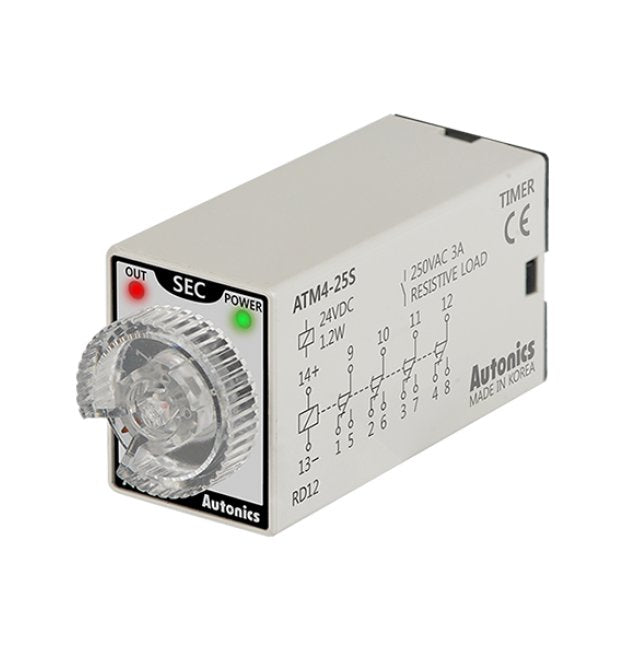

The Autonics USA 24V DC Miniature Analog Timer is a high-quality timer designed for precise time setting operations. With a setting range of 0.5 to 5 seconds and a single pole double throw (SPDT) control output, this timer ensures accurate power-on delay functionality. It operates within an environment ambient temperature range of -10 to 50 °C, suitable for various industrial settings. This digital timer is CE approved and weighs only 42g, making it a compact and reliable choice for controllers in both consumer and institutional applications.
Product Specifications
Note Note
Refer to time specifications for control time setting range by model.The weight includes packaging. The weight in parenthesis is for unit only.The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.Sold separately: My socket
Specifications Approval
European Conformity (CE)
Specifications Approximate Net Weight
42 g
Specifications Approximate Weight
48 g
Specifications Control Output
Single Pole Double Throw (SPDT) (1C): 4
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications List Price
26.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Power On Delay
Specifications Setting Range
0.5 to 5 Second
Specifications Terminal
14-Pin Plug
Specifications Time Operation
Power On Start
Specifications Type
Digital
Specifications Weight
0.5 lb
