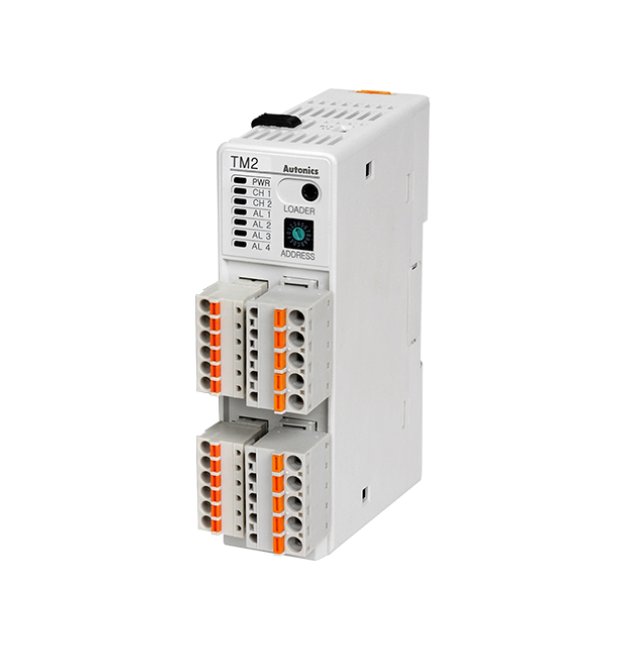

Autonics USA 24V DC PID Temperature Controller Module
Autonics USA 24V DC PID Temperature Controller Module
SKU:PRO-9ab757
Precise 24V DC PID Temperature Controller Module for industrial temperature regulation.
Regular price
$321.95
Regular price
Sale price
$321.95
Unit price
per
Initiate Order
Autonics USA 24V DC PID Temperature Controller Module
$321.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V DC PID Temperature Controller Module
$321.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 24V DC PID Temperature Controller Module is a precise multi-channel module ideal for accurate temperature control in industrial settings. With dimensions of 30 x 100 x 84.8 mm, this controller supports On/Off, P, PD, PI, and PID control methods to ensure stable temperature regulation. It features relay contact output, 4 alarm sub outputs, and a sampling cycle of 50 ms. Approved by UL, CE, and KC, this controller meets stringent quality standards and operates in ambient temperatures from -10 to 50°C.
Product Specifications
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE) | Korea Certification (KC)
Specifications Channel
2 channel
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Relay Contact Output
Specifications Ct Input Measurement Accuracy
±5% F.S. ±1-Digit Max.
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
30 x 100 x 84.8 mm
Specifications Direct Current Dc Voltage
24 V
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 100ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 1kv)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
321.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Measurement Accuracy Current Output
±1.5% F.S. ±1-Digit max.
Specifications Module Type
Expansion Module
Specifications Note
The expansion module does not supply power/comm. terminal. Order it with the basic module.In case of thermocouple K, J, E, T, N, it is below -100? and L, U, Platinel II, it is below ±2? ±1-digit.In case of thermocouple B, display accuracy cannot be ensured under 400?.In case of thermocouple R, S, it is below 200? and C, G, it is max. 3? ±1-digit.Influence of temperature: Applied when it is for out of room temperature (23±5?) range.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Note For Sampling Cycle
(2-CH synchronous sampling)
Specifications Number Of Input Channels
2-Channel
Specifications Option Input
CT, Digital(DI-1/2)
Specifications Option Output
Alarm 1/2/3/4, RS485 comm.
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Relay Output Control Period
0.1 to 120.0 s
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Rtd Measurement Accuracy
(PV ±0.5% or ±1â, Select the Higher One) ±1-Digit Max.
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
143 g
Specifications Ssr Output Control Period
1.0 to 120.0 s
Specifications Thermocouple Input Specification
B(PR) | C(TT) | E(CR) | G(TT) | J(IC) | K(CA) | L(IC) | N(NN) | Platinel II | R(PR) | S(PR) | T(CC) | U(CC)
Specifications Thermocouple Measurement Accuracy
(PV ±0.5% or ±1â, Select the Higher One) ±1-Digit Max.
Specifications Type
Multi Channel Module
Specifications Unit Weight
208 g
Specifications Weight
0.54 lb
