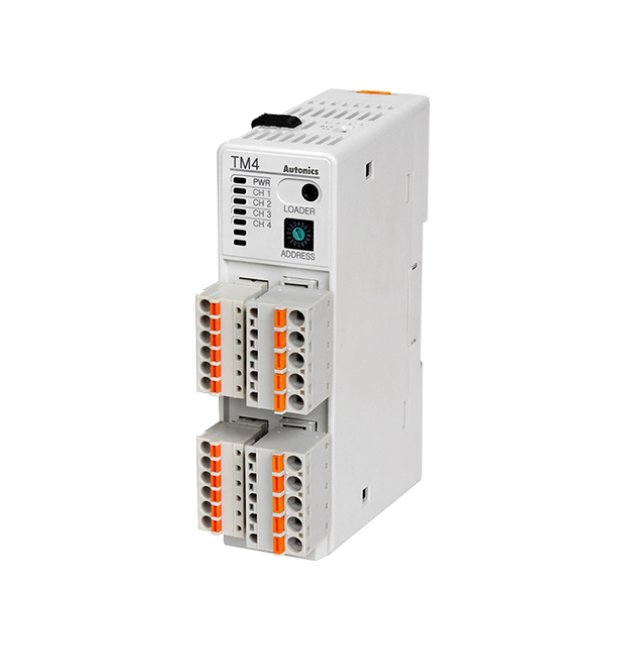

Autonics USA 24V DC Temperature Controller
Autonics USA 24V DC Temperature Controller
SKU:PRO-e05a83
Achieve precise temperature control with the Autonics USA 24V DC Temperature Controller. 4-channel module with PID control and SSR output.
Regular price
$363.95
Regular price
Sale price
$363.95
Unit price
per
Initiate Order
Autonics USA 24V DC Temperature Controller
$363.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V DC Temperature Controller
$363.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 24V DC Temperature Controller is a versatile 4-channel module designed for precise temperature control in industrial settings. With PID control algorithms and SSR voltage output, this controller offers reliable temperature management. It supports On/Off Control, P, PD, PI, and PID Control methods, ensuring flexibility in operation. Meeting Canadian, US, European, and Korea certification standards, including UL, CE, and KC, this temperature controller guarantees safety and compliance. The expansion module allows for RS485 communication, enhancing connectivity and data exchange capabilities.
Product Specifications
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE) | Korea Certification (KC)
Specifications Channel
4 channel
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
SSR voltage output
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
30 x 100 x 84.8 mm
Specifications Direct Current Dc Voltage
24 V
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 100ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 1kv)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
363.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Module Type
Expansion Module
Specifications Note
The expansion module does not supply power/comm. terminal. Order it with the basic module.In case of thermocouple K, J, E, T, N, it is below -100? and L, U, Platinel II, it is below ±2? ±1-digit.In case of thermocouple B, display accuracy cannot be ensured under 400?.In case of thermocouple R, S, it is below 200? and C, G, it is max. 3? ±1-digit.Influence of temperature: Applied when it is for out of room temperature (23±5?) range.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Note For Sampling Cycle
(4-CH synchronous sampling)
Specifications Number Of Input Channels
4-Channel
Specifications Option Output
RS485 Communication
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Relay Output Control Period
0.1 to 120.0 s
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Rtd Measurement Accuracy
(PV ±0.5% or ±1â, Select the Higher One) ±1-Digit Max.
Specifications Sampling Cycle
100 ms
Specifications Shipping Weight
166 g
Specifications Ssr Output Control Period
1.0 to 120.0 s
Specifications Thermocouple Input Specification
B(PR) | C(TT) | E(CR) | G(TT) | J(IC) | K(CA) | L(IC) | N(NN) | Platinel II | R(PR) | S(PR) | T(CC) | U(CC)
Specifications Thermocouple Measurement Accuracy
(PV ±0.5% or ±1â, Select the Higher One) ±1-Digit Max.
Specifications Type
Multi Channel Module
Specifications Unit Weight
231 g
Specifications Weight
0.55 lb
