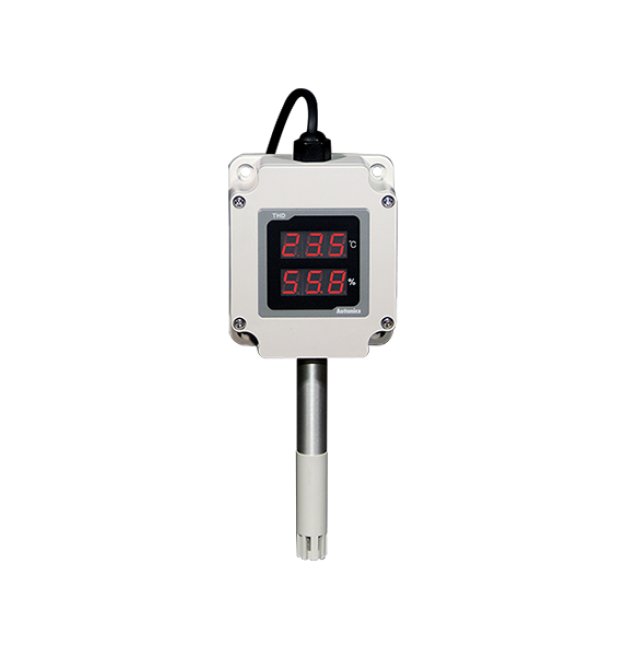

Autonics USA 24V DC Temperature Controller
Autonics USA 24V DC Temperature Controller
SKU:PRO-444964
Autonics USA 24V DC Temperature Controller with 100mm pole, 3-digit display, and 4-20mA output. CE-approved for -20 to 60°C environments.
Regular price
$322.95
Regular price
Sale price
$322.95
Unit price
per
Initiate Order
Autonics USA 24V DC Temperature Controller
$322.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V DC Temperature Controller
$322.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 24V DC Temperature Controller is a top-of-the-line solution for precise temperature monitoring and control. With a 100mm sensing pole and a 3-digit LED display, this controller offers unparalleled accuracy and visibility. It operates on a 24V DC voltage with a 4-20mA output for seamless integration into various systems. Meeting European Conformity (CE) standards, this temperature controller ensures reliable performance in ambient temperatures ranging from -20 to 60°C. With IP65 protection and high accuracy levels, this controller is ideal for industrial applications requiring stringent temperature regulation.
Product Specifications
Specifications Approval
European Conformity (CE)
Specifications Dimensions
72 x 85 x 100 mm
Specifications Direct Current Dc Voltage
24 V
Specifications Display Method
3-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Temperature
-20 to 60 ºC
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications List Price
322.95 USD
Specifications Measured Relative Humidity Rh
0.0 to 99.9 %
Specifications Measured Temperature
-19.9 to 60.0â ºC
Specifications Note
AccuracyRoom temperature is 23C ±5%.It may cause degree of degradation when this unit is exposed to organic chemicals such as alcohol gas or sulfuric acid.It may cause degree of degradation for humidity when using this unit at high temperature/humidity environment for a long time.It may cause error of humidity value when this unit is exposed to high humidity environment (over 80%RH) for a long time.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Output Relative Humidity Rh
Current Output (Direct Current (DC) 4 to 20 mA)
Specifications Output Temperature
Current Output (Direct Current (DC) 4 to 20 mA)
Specifications Protection Structure
Ingress Protection (IP) 65 (Except Sensor Part)
Specifications Relative Humidity Rh Accuracy
Typ. ±2%RH(10 to 90%RH, at room temp.) , Max. ±2.5%RH
Specifications Resolution
1/1000
Specifications Sampling Cycle
500 ms
Specifications Sensing Pole Length
100 mm
Specifications Shipping Weight
160 g
Specifications Temperature Accuracy
±1.0 (at Room Temperature) ºC
Specifications Temperature Output
Direct Current (DC) 4 to 20 mA
Specifications Type
Temp/Humidity transducer
Specifications Unit Weight
415 g
Specifications Weight
0.51 lb
