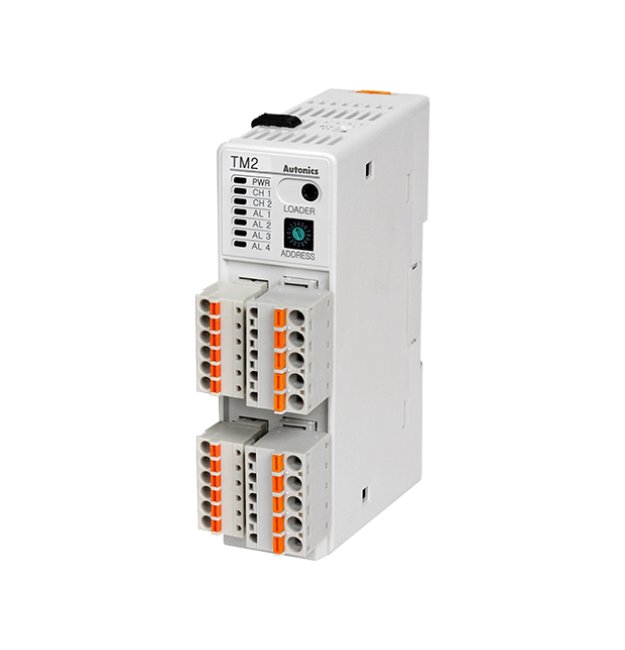

Autonics USA 24V DC Temperature Controller - 2 Channel PID Relay Control
Autonics USA 24V DC Temperature Controller - 2 Channel PID Relay Control
SKU:PRO-2f5b62
High-quality 24V DC temperature controller with PID control, relay output, and multi-channel functionality.
Regular price
$332.95
Regular price
Sale price
$332.95
Unit price
per
Initiate Order
Autonics USA 24V DC Temperature Controller - 2 Channel PID Relay Control
$332.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V DC Temperature Controller - 2 Channel PID Relay Control
$332.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 24V DC Temperature Controller is a high-quality multi-channel module for precise temperature control. It features PID control methods, relay output, and 4 alarm sub outputs, catering to advanced temperature management needs. With approvals from CURUS, CE, and KC, this controller ensures compliance with Canadian, US, and European regulatory standards. Operating within a wide ambient temperature range and offering various thermocouple and RTD input specifications, this controller provides exceptional accuracy and reliability in diverse environmental conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accessories
Expansion Connector: 1 | Power/Comm. Connector: 1
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE) | Korea Certification (KC)
Specifications Channel
2 channel
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Relay Contact Output
Specifications Ct Input Measurement Accuracy
±5% F.S. ±1-Digit Max.
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
30 x 100 x 84.8 mm
Specifications Direct Current Dc Voltage
24 V
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 100ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 1kv)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
332.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Measurement Accuracy Current Output
±1.5% F.S. ±1-Digit max.
Specifications Module Type
Basic Module
Specifications Note
The expansion module does not supply power/comm. terminal. Order it with the basic module.In case of thermocouple K, J, E, T, N, it is below -100? and L, U, Platinel II, it is below ±2? ±1-digit.In case of thermocouple B, display accuracy cannot be ensured under 400?.In case of thermocouple R, S, it is below 200? and C, G, it is max. 3? ±1-digit.Influence of temperature: Applied when it is for out of room temperature (23±5?) range.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Note For Sampling Cycle
(2-CH synchronous sampling)
Specifications Number Of Input Channels
2-Channel
Specifications Option Input
CT, Digital(DI-1/2)
Specifications Option Output
Alarm 1/2/3/4, RS485 comm.
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Relay Output Control Period
0.1 to 120.0 s
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Rtd Measurement Accuracy
(PV ±0.5% or ±1â, Select the Higher One) ±1-Digit Max.
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
152 g
Specifications Ssr Output Control Period
1.0 to 120.0 s
Specifications Thermocouple Input Specification
B(PR) | C(TT) | E(CR) | G(TT) | J(IC) | K(CA) | L(IC) | N(NN) | Platinel II | R(PR) | S(PR) | T(CC) | U(CC)
Specifications Thermocouple Measurement Accuracy
(PV ±0.5% or ±1â, Select the Higher One) ±1-Digit Max.
Specifications Type
Multi Channel Module
Specifications Unit Weight
217 g
Specifications Weight
0.55 lb
