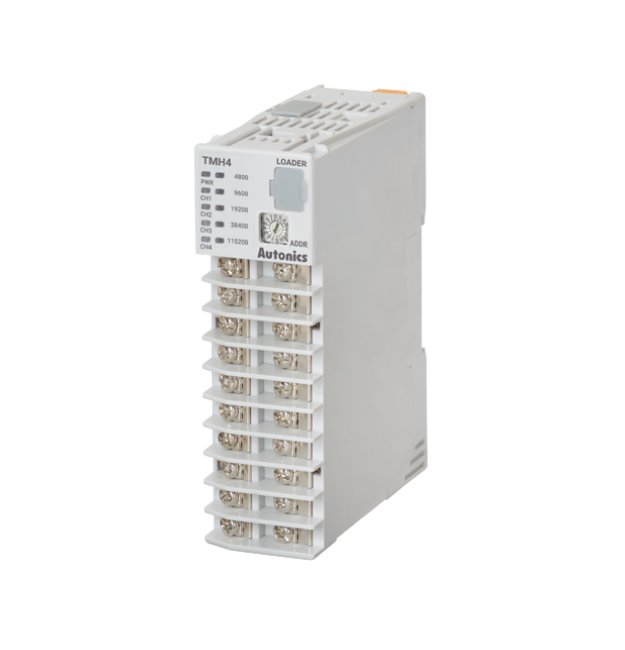

The Autonics USA 24V DC Voltage Temperature Controller is a versatile and precise temperature control solution designed for industrial applications. With 4-channel capability and a range of input types including analog voltage and current, this controller offers flexible control methods such as On/Off, P, PD, PI, and PID. It meets international standards like IP20, CURUS, CE, and KC for protection and quality assurance. Featuring robust construction and high accuracy in thermocouple, RTD, and analog measurements, this controller ensures efficient and reliable temperature management in diverse environments.
Product Specifications
Specifications Accessories
Expansion Connector: 1 | Module Lock Connector: 2
Specifications Allowable Rated Voltage Range
90 to 110 %
Specifications Analog Measurement Accuracy
At room temperature(23â±5â): ±0.3% F.S. ±1-digitOut of room temperature range: ±0.5% F.S. ±1-digit
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE) | Korea Certification (KC)
Specifications Communication Terminal
RS485 Communication Output (Modbus RTU)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output Relay
250VAC, 3A, 1a
Specifications Ct Input Option
0.0-50.0A (Primary Current Measurement Range), CT Ratio=1/1000, Measured Accuracy: ±5% F.S. ±1-digit
Specifications Current Control Output
Selectable Direct Current (DC) 4 to 20mA or Direct Current (DC) 0 to 20mA (Load Resistance Maximum 500â¦)
Specifications Derivative Time
0 to 9999 s
Specifications Dielectric Strength
1000VAC 50/60Hz for 1 min (Between Input Terminals and Power Terminals)
Specifications Direct Current Dc Voltage
24 V
Specifications Display Method
None-parameter Setting and Monitoring is Available at External Devices (PC, PLC, etc.)
Specifications Electrical Relay Life Cycle
Minimum 100000 Operations (250VAC, 3A Resistance Load)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Hysteresis Adjustable Sensitivity
RTD/Thermocouples: 1 to 100ºC/ºF (0.1 to 100.0ºC/ºF), Analog: 1 to 100 Digit
Specifications Input Type Analog Current
0 to 20mA | 4 to 20mA
Specifications Input Type Analog Voltage
0 to 100mVDC | 0 to 10VDC | 0 to 5VDC | 1 to 5VDC
Specifications Insulation Resistance
100M⦠(at 500VDC Megger)
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 1kv)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
814.95 USD
Specifications Manual Reset
0 to 100%( 0.0 to 100.0%)
Specifications Maximum Ssr Control Direct Current Dc Voltage Out
12 V
Specifications Mechanical Relay Life Cycle
Minimum 10000000 Operations
Specifications Memory Protection
Approximate 10 Years(Non-volatile Semiconductor Memory Type)
Specifications Noise Immunity
±0.5kV the Square Wave Noise (Pulse Width: 1µs) By the Noise Simulator
Specifications Note
Thermocouple: Connecting 1 or more expansion module can vary measurement accuracy about ±1?, regardless of the number of connected expansion module.Measured accuracy:At room temperature (23?±5?)Thermocouple K, J, T, N, E below -100?, L, U, PLII, and RTD Cu50?, DPt50?: (PV ±0.3% or ±2?, higher one) ± 1-digitThermocouple C, G and R, S below 200?: (PV ±0.3% or ±3?, higher one) ± 1-digitThermocouple B below 400?: there is no accuracy standards.Out of room temperature rangeRTD Cu50?, DPt50?: (PV ±0.5% or ±3?, higher one) ± 1-digitThermocouple R, S, B, C, G: (PV ±0.5% or ±5?, higher one) ± 1-digitOther blow -100?: within ±5?The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Note For Sampling Cycle
(2-CH or 4-CH Synchronous Sampling)
Specifications Number Of Input Channels
4-Channel
Specifications Option Output Alarm
250VAC, 3A, 1a
Specifications Pc Loader Communication
TTL
Specifications Power Consumption
8
Specifications Proportional Band
RTD/Thermocouples: 1 to 999ºC/ºF (0.1 to 999.9ºC/ºF), analog: 0.1 to 999.9 digit
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Ssr Control Direct Current Dc Voltage Tolerance
±3 V
