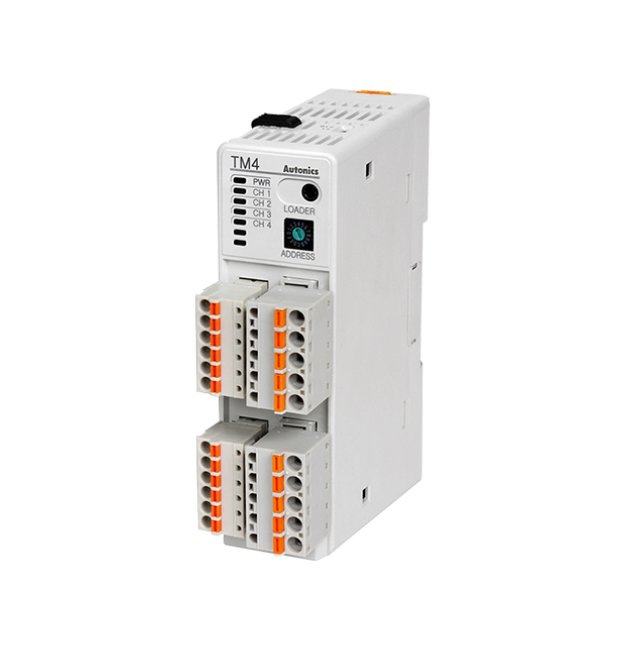

Autonics USA 24V DC Temperature Controller with SSR Control Output
Autonics USA 24V DC Temperature Controller with SSR Control Output
SKU:PRO-e504e5
Efficient 24V DC Temperature Controller with 4-channel PID module, SSR output, and precise control methods for industrial use.
Regular price
$385.95
Regular price
Sale price
$385.95
Unit price
per
Initiate Order
Autonics USA 24V DC Temperature Controller with SSR Control Output
$385.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V DC Temperature Controller with SSR Control Output
$385.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 24V DC Temperature Controller offers precise temperature control with a 4-channel PID module and SSR voltage output. Featuring On/Off Control, P, PD, PI, PID Control methods, and a 100ms sampling cycle, this controller ensures accurate and efficient operation. Meeting Canadian and US UL, European CE, and Korean KC standards, it operates in temperatures ranging from -10 to 50°C. With a range of thermocouple and RTD input options, adjustable hysteresis, and multiple control output periods, this controller is ideal for various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accessories
Expansion Connector: 1 | Power/Comm. Connector: 1
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE) | Korea Certification (KC)
Specifications Channel
4 channel
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
SSR voltage output
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
30 x 100 x 84.8 mm
Specifications Direct Current Dc Voltage
24 V
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 100ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 1kv)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
385.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Module Type
Basic Module
Specifications Note
The expansion module does not supply power/comm. terminal. Order it with the basic module.In case of thermocouple K, J, E, T, N, it is below -100? and L, U, Platinel II, it is below ±2? ±1-digit.In case of thermocouple B, display accuracy cannot be ensured under 400?.In case of thermocouple R, S, it is below 200? and C, G, it is max. 3? ±1-digit.Influence of temperature: Applied when it is for out of room temperature (23±5?) range.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Note For Sampling Cycle
(4-CH synchronous sampling)
Specifications Number Of Input Channels
4-Channel
Specifications Option Output
RS485 Communication
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Relay Output Control Period
0.1 to 120.0 s
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Rtd Measurement Accuracy
(PV ±0.5% or ±1â, Select the Higher One) ±1-Digit Max.
Specifications Sampling Cycle
100 ms
Specifications Shipping Weight
174 g
Specifications Ssr Output Control Period
1.0 to 120.0 s
Specifications Thermocouple Input Specification
B(PR) | C(TT) | E(CR) | G(TT) | J(IC) | K(CA) | L(IC) | N(NN) | Platinel II | R(PR) | S(PR) | T(CC) | U(CC)
Specifications Thermocouple Measurement Accuracy
(PV ±0.5% or ±1â, Select the Higher One) ±1-Digit Max.
Specifications Type
Multi Channel Module
Specifications Unit Weight
239 g
Specifications Weight
0.57 lb
