Autonics USA 24V HMI Display – 211.2 x 158.4mm TFT LCD
Autonics USA 24V HMI Display – 211.2 x 158.4mm TFT LCD
SKU:PRO-b770e6
Enhance efficiency with Autonics 24V HMI Display - 211.2 x 158.4mm TFT LCD, Real Time Clock, IP65 Protection, CE & KC Approved!
Regular price
$930.95
Regular price
Sale price
$930.95
Unit price
per
Initiate Order
Autonics USA 24V HMI Display – 211.2 x 158.4mm TFT LCD
$930.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V HMI Display – 211.2 x 158.4mm TFT LCD
$930.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

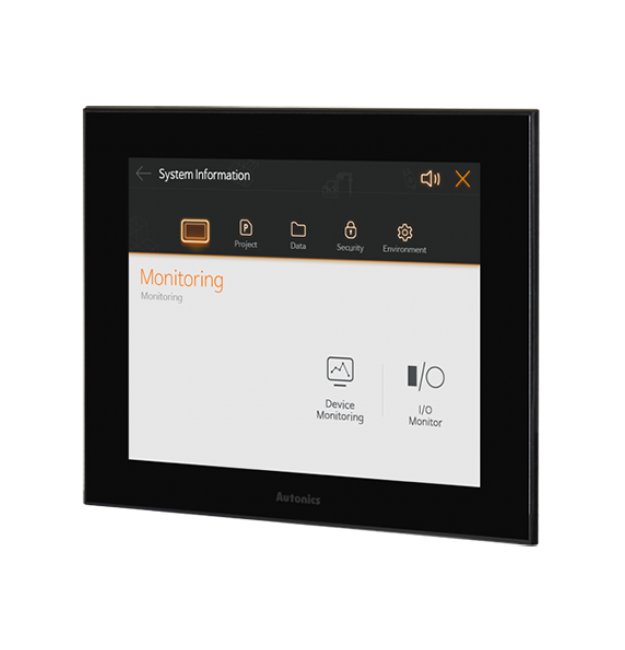

Enhance operational efficiency with the Autonics USA Human-Machine Interface. Featuring a 64MB graphic drawing memory, Analog Touch, Real Time Clock, and IP65 protection. This HMI supports English and Korean graphic language, 100 user pages, and a resolution of 800x600. CE and KC approved, it operates in a wide ambient temperature range (0-50°C) ensuring reliability in diverse environments.
Product Specifications
Accessories Accessories
Fixing Bracket: 6, Battery (Included)
Display Specifications Display Area
211.2 x 158.4 mm
Display Specifications Display Color
16,777,216
Display Specifications Display Resolution
800 x 600 dots
Display Specifications Display Type
Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Bitmap ASCII and Vector Font
Graphic Drawing Performance Number Of User Screen
100 Pages
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
1.10 kg
Specifications Approximate Weight
1.66 kg
Specifications Dedicated Software
atDesigner | atLogic
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
Institute of Electrical and Electronics Engineers (IEEE) 802.3(U), 10/100Base-TX
Specifications Graphic Drawing Memory
64 MB
Specifications List Price
930.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel, International Electrotechnical Commission (IEC) Standard)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
1 EA
Specifications Rs422 Interface
1 EA
Specifications Touch Method
Analog Touch (Resistive Type)
Specifications Type
Human-Machine Interface (HMI)
Specifications Universal Serial Bus Usb Device Interface
1 EA
Specifications Universal Serial Bus Usb Host Interface
1 EA
Specifications Weight
0.2 lb
