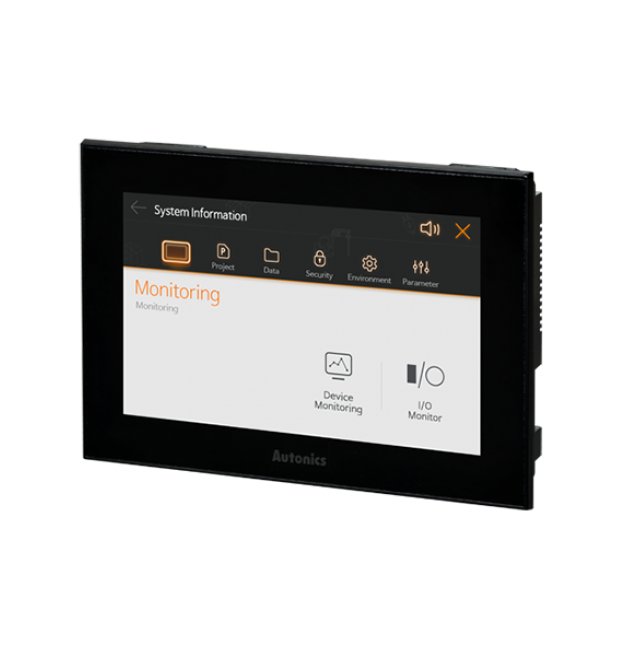

Autonics USA 24V HMI with 152.4 x 94.44mm Display
Autonics USA 24V HMI with 152.4 x 94.44mm Display
SKU:PRO-1496e8
Enhance control with Autonics USA 24V HMI - 152.4 x 94.44mm TFT display, Real Time Clock, IP65 protection, CE/KC certified.
Regular price
$560.95
Regular price
Sale price
$560.95
Unit price
per
Initiate Order
Autonics USA 24V HMI with 152.4 x 94.44mm Display
$560.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V HMI with 152.4 x 94.44mm Display
$560.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience seamless control with the Autonics USA Human-Machine Interface (HMI) featuring a 24V DC voltage system and a 152.4 x 94.44mm TFT color LCD display. This HMI offers 64MB graphic drawing memory, analog resistive touch technology, Real Time Clock functionality, and IP65 protection. With interfaces including RS232C, Ethernet, USB, and RS422, this device ensures efficient communication. It meets European Conformity (CE) and Korean Certification (KC) standards, making it a reliable choice for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories
Fixing Bracket: 6, Battery (Included)
Display Specifications Display Area
152.4 x 94.44 mm
Display Specifications Display Color
16,777,216
Display Specifications Display Resolution
800 x 480 dots
Display Specifications Display Type
Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Bitmap ASCII and Vector Font
Graphic Drawing Performance Number Of User Screen
100 Pages
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
540 g
Specifications Approximate Weight
742 g
Specifications Dedicated Software
atDesigner | atLogic
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
Institute of Electrical and Electronics Engineers (IEEE) 802.3(U), 10/100Base-T
Specifications Graphic Drawing Memory
64 MB
Specifications List Price
560.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel, International Electrotechnical Commission (IEC) Standard)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
1 EA
Specifications Rs422 Interface
1 EA
Specifications Touch Method
Analog Touch (Resistive Type)
Specifications Type
Human-Machine Interface (HMI)
Specifications Universal Serial Bus Usb Device Interface
1 EA
Specifications Universal Serial Bus Usb Host Interface
1 EA
Specifications Weight
0.2 lb
