Autonics USA 24V PID Temperature Controller
Autonics USA 24V PID Temperature Controller
SKU:PRO-7d6cca
Precise 24V PID temperature controller with Relay Control output and dual alarms. Meets international standards.
Regular price
$299.95
Regular price
Sale price
$299.95
Unit price
per
Initiate Order
Autonics USA 24V PID Temperature Controller
$299.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V PID Temperature Controller
$299.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

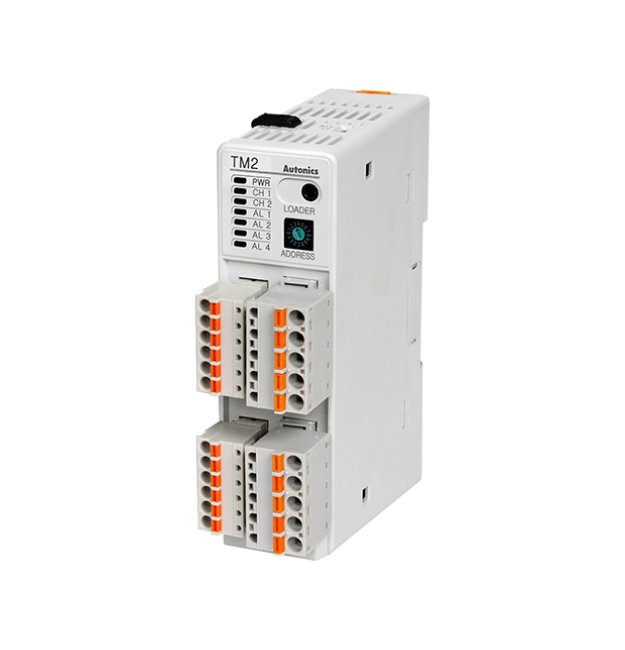

The Autonics USA 24V PID Temperature Controller is a precision 2-channel module designed for accurate temperature control in industrial settings. With a control range of -10 to 50 ºC, this controller offers On/Off, P, PD, PI, and PID control methods for optimal efficiency. It features Relay Control output, 2 Alarms Sub output, and supports various thermocouple and RTD inputs. This controller meets Canadian and US Standards by Underwriters' Laboratories (CURUS), European Conformity (CE), and Korea Certification (KC) for reliable performance.
Product Specifications
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE) | Korea Certification (KC)
Specifications Channel
2 channel
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
Relay Contact Output
Specifications Ct Input Measurement Accuracy
±5% F.S. ±1-Digit Max.
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
30 x 100 x 84.8 mm
Specifications Direct Current Dc Voltage
24 V
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Hysteresis Adjustable Sensitivity
1 to 100ºC/ºF(0.1 to 100ºC/ºF) variable
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 1kv)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
299.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Measurement Accuracy Current Output
±1.5% F.S. ±1-Digit max.
Specifications Module Type
Expansion Module
Specifications Note
The expansion module does not supply power/comm. terminal. Order it with the basic module.In case of thermocouple K, J, E, T, N, it is below -100? and L, U, Platinel II, it is below ±2? ±1-digit.In case of thermocouple B, display accuracy cannot be ensured under 400?.In case of thermocouple R, S, it is below 200? and C, G, it is max. 3? ±1-digit.Influence of temperature: Applied when it is for out of room temperature (23±5?) range.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Note For Sampling Cycle
(2-CH synchronous sampling)
Specifications Number Of Input Channels
2-Channel
Specifications Option Input
CT, Digital(DI-1/2)
Specifications Option Output
Alarm 1/2, RS485 comm.
Specifications Proportional Band
0.1 to 999.9ºC/ºF
Specifications Relay Output Control Period
0.1 to 120.0 s
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Rtd Measurement Accuracy
(PV ±0.5% or ±1â, Select the Higher One) ±1-Digit Max.
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
143 g
Specifications Ssr Output Control Period
1.0 to 120.0 s
Specifications Thermocouple Input Specification
B(PR) | C(TT) | E(CR) | G(TT) | J(IC) | K(CA) | L(IC) | N(NN) | Platinel II | R(PR) | S(PR) | T(CC) | U(CC)
Specifications Thermocouple Measurement Accuracy
(PV ±0.5% or ±1â, Select the Higher One) ±1-Digit Max.
Specifications Type
Multi Channel Module
Specifications Unit Weight
208 g
Specifications Weight
0.52 lb
