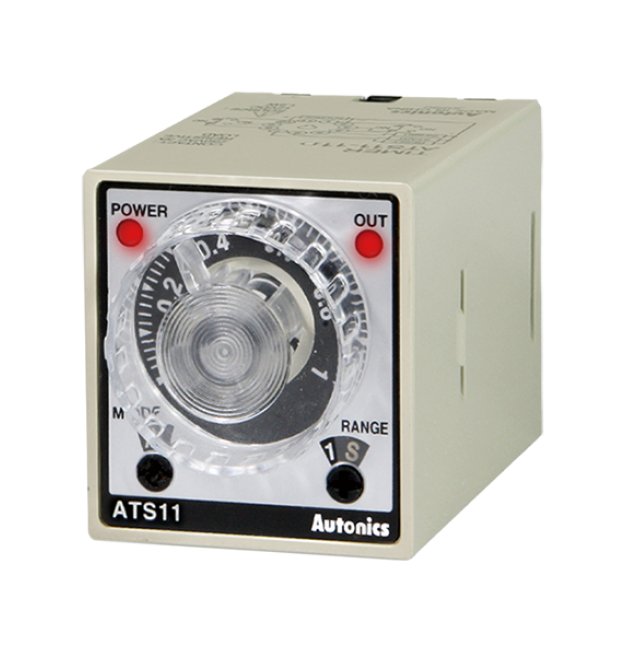

Autonics USA 24V Small Analog Timer
Autonics USA 24V Small Analog Timer
SKU:PRO-f02f38
Versatile Autonics USA 24V Small Analog Timer for precise time operations, 6 modes, multi-range. CE and cULus Listed. Ideal for ambient temp -10 to 55 ºC.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics USA 24V Small Analog Timer
$29.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V Small Analog Timer
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA Small Analog Timer is a versatile device designed for precise time setting operations. With 6 modes and a multi-range of 0.1 sec to 10 hours, this timer offers flexibility in output operations including flicker, interval, and various signal delays. It operates on 24V AC/DC voltage, meeting European Conformity (CE) and cULus Listed standards. Suitable for ambient temperatures from -10 to 55 ºC, this timer is compact, analog, and comes with an 11-pin plug terminal for easy installation. Ensure accurate time control with Autonics quality and reliability.
Product Specifications
Accessories Accessories
Bracket
Function Function
Signal on Start
Specifications Alternating Current Ac Voltage
24 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT)(2C)
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2
Specifications Control Time Setting Range
0.1 Second to 10 Hour
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Signal Off Delay | Signal On Delay | Signal On-Off Delay
Specifications Setting Range
0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 1 to 10 Hour | 1 to 10 Minute | 1 to 10 Second
Specifications Signal Input Method
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Terminal
11-Pin Plug
Specifications Time Operation
Signal On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
