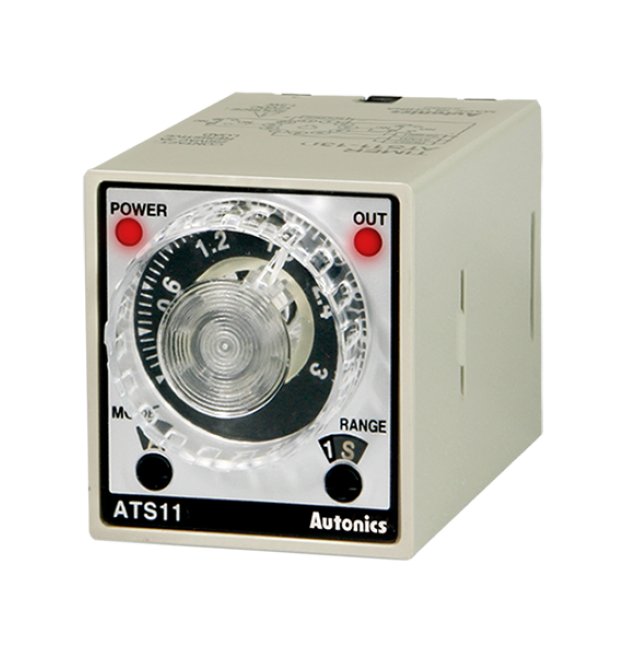

Autonics USA 24V Small Analog Timer - Multi-Range DPDT Controller
Autonics USA 24V Small Analog Timer - Multi-Range DPDT Controller
SKU:PRO-6226ed
Versatile Autonics USA 24V Small Analog Timer for precise time setting operations. 6 modes, multi-range capability, CE and cULus Listed.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics USA 24V Small Analog Timer - Multi-Range DPDT Controller
$29.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24V Small Analog Timer - Multi-Range DPDT Controller
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 24V Small Analog Timer is a versatile controller designed for precise time setting operations. With 6 modes and a multi-range capability from 0.3 seconds to 30 hours, this timer offers flexibility in output operations including flicker, interval, and various signal delays. It meets European Conformity (CE) and cULus Listed standards, making it suitable for a wide range of applications. Ideal for both consumer and institutional buyers requiring reliable time-dependent operations.
Product Specifications
Accessories Accessories
Bracket
Function Function
Signal on Start
Specifications Alternating Current Ac Voltage
24 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT)(2C)
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2
Specifications Control Time Setting Range
0.3 Second to 30 Hour
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Signal Off Delay | Signal On Delay | Signal On-Off Delay
Specifications Setting Range
0.3 to 3 Hour | 0.3 to 3 Minute | 0.3 to 3 Second | 3 to 30 Hour | 3 to 30 Minute | 3 to 30 Second
Specifications Signal Input Method
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Terminal
11-Pin Plug
Specifications Time Operation
Signal On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
