Autonics USA 24VDC Miniature Analog Timer for Precise Time Setting
Autonics USA 24VDC Miniature Analog Timer for Precise Time Setting
SKU:PRO-1cc6f9
Efficient Autonics USA 24VDC Analog Timer for precise time control. 14-Pin Plug, SPDT output, CE approved. Ideal for -10 to 50 °C environments.
Regular price
$26.95
Regular price
Sale price
$26.95
Unit price
per
Initiate Order
Autonics USA 24VDC Miniature Analog Timer for Precise Time Setting
$26.95
Quantity: 1
Claim Your Seller Account
Autonics USA 24VDC Miniature Analog Timer for Precise Time Setting
$26.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

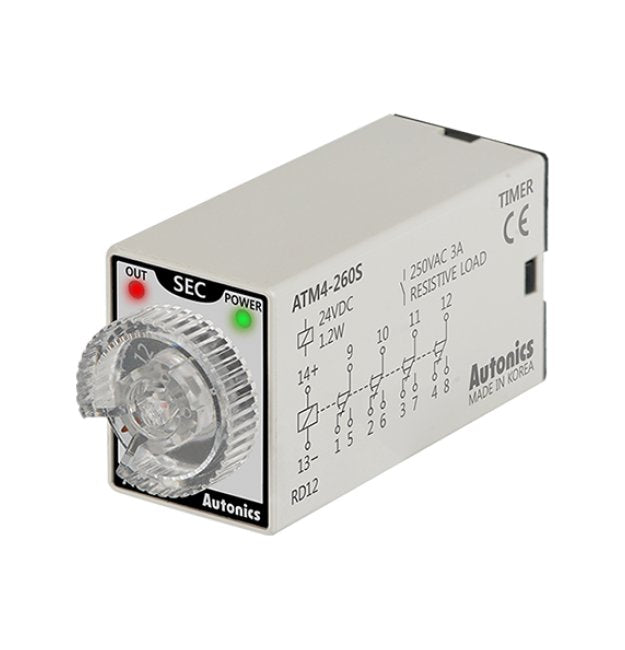

The Autonics USA 24VDC Miniature Analog Timer is a reliable time-setting solution designed for precise and accurate control operations. With a 14-Pin Plug terminal and SPDT control output, this timer offers a setting range of 6 to 60 seconds, ideal for power-on delay applications. It operates at an ambient temperature range of -10 to 50 °C and weighs only 42g, making it lightweight and versatile. This digital timer is European Conformity (CE) approved, ensuring compliance with international standards for quality and performance.
Product Specifications
Note Note
Refer to time specifications for control time setting range by model.The weight includes packaging. The weight in parenthesis is for unit only.The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.Sold separately: My socket
Specifications Approval
European Conformity (CE)
Specifications Approximate Net Weight
42 g
Specifications Approximate Weight
48 g
Specifications Control Output
Single Pole Double Throw (SPDT) (1C): 4
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications List Price
26.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Power On Delay
Specifications Setting Range
6 to 60 Second
Specifications Terminal
14-Pin Plug
Specifications Time Operation
Power On Start
Specifications Type
Digital
Specifications Weight
0.5 lb
